The Protekt® Onyx Hydraulic Patient Lift delivers smooth, controlled lifting performance using high-output hydraulic technology that ensures gradual, safe movement during every transfer. Designed for durability, simplicity, and comfort, this lift provides an affordable solution for reliable home-care or facility-based patient handling.

Features & Benefits

450 lb Weight Capacity

Provides strong, stable support for a wide range of users in home or facility settings.

Versatile Spreader Bar

Compatible with both 4-point and 6-point slings, enabling safer handling and a broader range of transfer applications.

Smooth Hydraulic Lifting

The high-performance hydraulic pump delivers smooth, controlled lifting and lowering from any seated or stationary position.

Easy Base Adjustment

Features a hand-operated base adjustment with secure locking for fast, safe positioning.

Dual Rear Locking Casters

Rear casters lock securely to enhance stability and safety during transfers.

Chain Connections Included

Comes with chain-style sling connections for added compatibility and versatility.

Heavy-Duty Steel Frame

Built with welded steel construction for long-term durability, strength, and reliability.

No-Clip Sling System

Designed with a “no clips to lose” configuration, simplifying operation and ensuring safe compliance.

Tool-Free Assembly

Assembles quickly with no tools required, perfect for rapid setup in any environment.

Warranty Coverage

Hydraulic Pump: 1-Year Limited
Frame: Limited Lifetime

Sling Size Guide

Size	Low Weight (lbs)	High Weight (lbs)	Range (lbs)	Height Range
Small (S)	75	150	75 lbs.	59” – 64”
Medium (M)	125	200	125 lbs.	63” – 68”
Large (L)	175	300	175 lbs.	67” – 72”
Extra Large (XL)	275	500	225 lbs.	71” – 76”
Extra Extra Large (XXL)	350	600	250 lbs.	Determine PRN

Specifications

Specification	Details
Weight Capacity	450 lbs
Unit Weight	85 lbs
Base Legs Length	40.5"
Base Closed External Width	22.0"
Base Open External Width	42.25"
Mast Height	51.0"
Base Height	5.25"
Minimum Lifting Height	17.0"
Maximum Lifting Height	61.0"

Videos

Downloads

Download The User Manual

FAQs

Protekt® Onyx Hydraulic Patient Lift — Frequently Asked Questions (FAQ)

What is the weight capacity of the Protekt® Onyx? +

The Protekt® Onyx supports up to 450 lbs, making it appropriate for a wide range of users who require dependable transfer assistance.

What types of slings can be used with this lift? +

The lift supports both 4-point and 6-point slings, offering flexibility and safer, more ergonomic patient positioning.

Is the lifting motion smooth and controlled? +

Yes. The Onyx uses high-performance hydraulic technology for smooth, gradual lifting and lowering from any seated or stationary position.

Can one caregiver operate the lift? +

Yes. The hydraulic pump and hand-operated base adjustments make single-caregiver operation possible, depending on patient needs and care protocols.

Does the base width adjust? +

Yes. The base includes a secure hand-operated width adjustment, allowing safe positioning around beds, wheelchairs, and chairs.

Does the lift require tools for assembly? +

No. The Protekt® Onyx is engineered for tool-free assembly so setup is quick and hassle-free.

Are the casters lockable? +

Yes. Dual rear locking casters help stabilize the lift during patient transfers.

Is it suitable for home use? +

Absolutely. The Onyx is designed for both home care and professional care settings, offering durability, ease of use, and affordability.

Does the lift include chain connections? +

Yes. Chain-style sling connections are included for secure, customizable sling attachment and positioning.

What is the warranty coverage? +

• Hydraulic Pump: 1-Year Limited Warranty
• Frame: Limited Lifetime Warranty

Does the lift support floor transfers? +

Yes. The Onyx can safely lift patients from the floor, depending on sling selection and caregiver technique.

Is it compatible with clip-style slings? +

No. The Protekt® Onyx uses chain or loop-style sling attachments and is not compatible with clip-style slings.

Warranty

Warranty

Hydraulic Pump: 1-Year Limited
Frame: Limited Lifetime

Hydraulic Patient Lifts

Proactive Protekt® Onyx Hyadraulic Patient Lift

Joerns Hoyer Classic Hydraulic Patient Lift

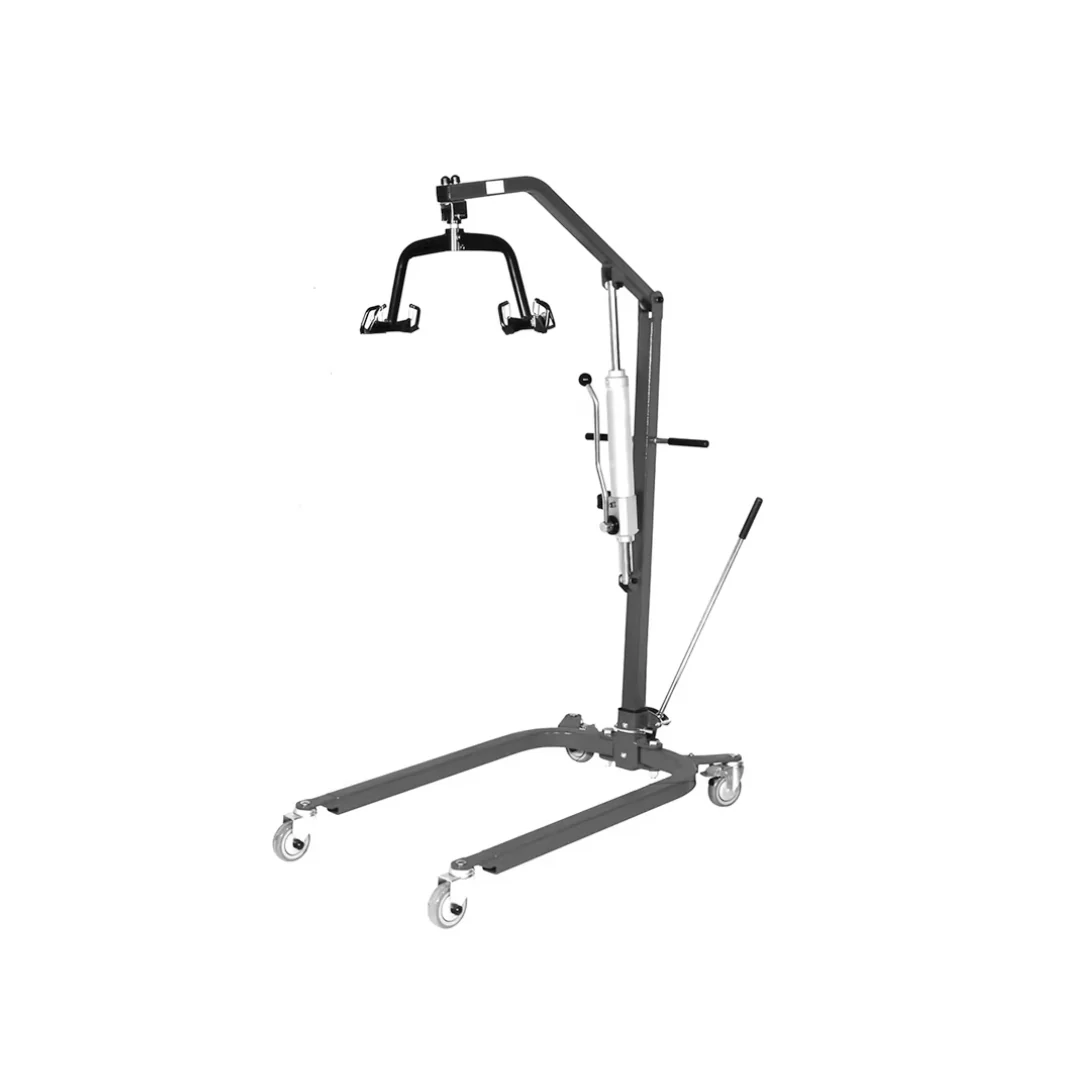

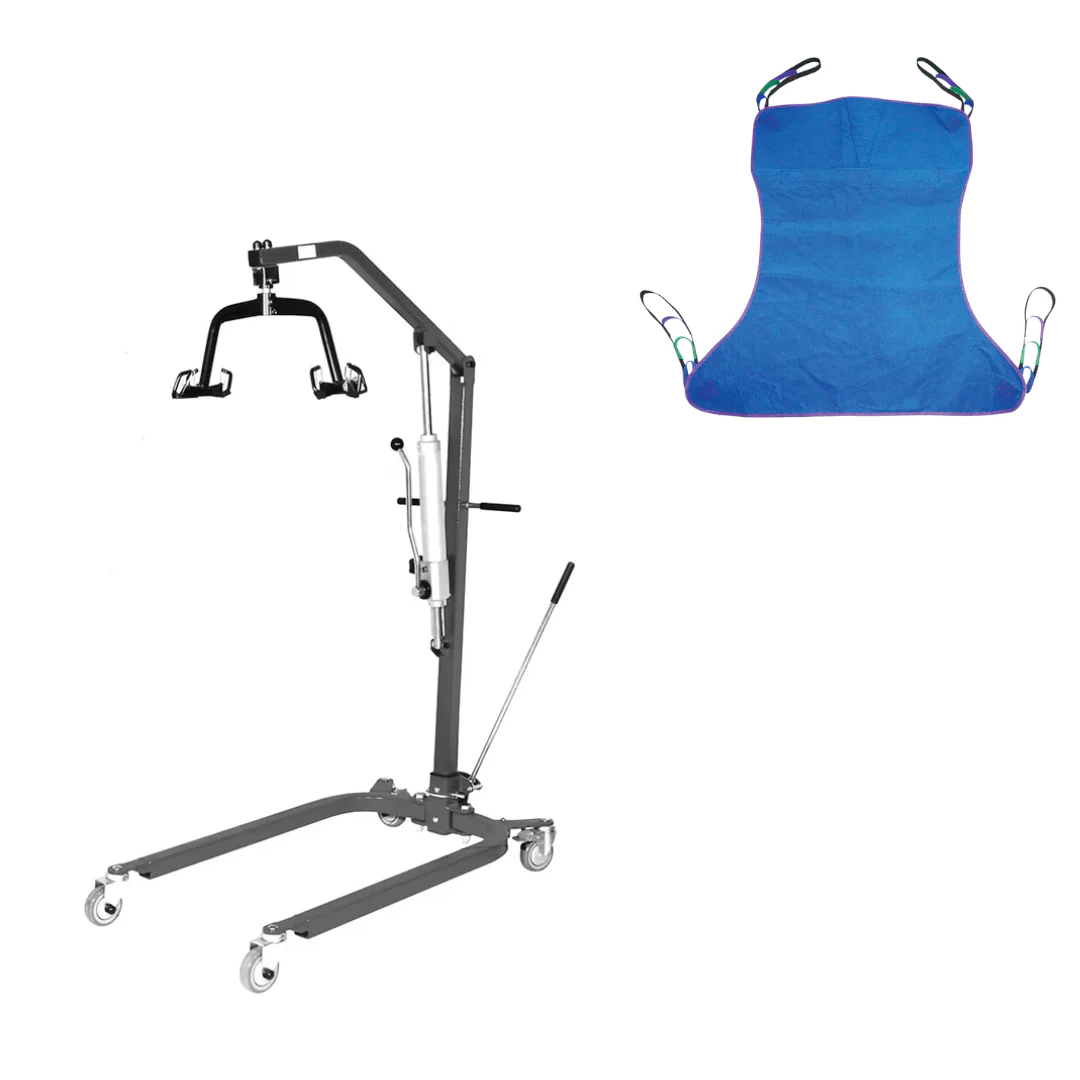

Rhythm Bariatric Hydraulic Patient Lift
