Foldawheel Lloyd Draco Advanced Standing Power Wheelchair
The Draco Standing Wheelchair is a premium electric standing wheelchair designed to deliver complete, all-in-one mobility. It allows users to safely drive, stand, sit, recline, and fully lie down, all within a single chair. This versatility reduces the need for manual transfers and minimizes caregiver effort throughout the day. With the added ability to recline into a flat resting position, Draco also enables users to take comfortable naps, promoting better circulation, pressure relief, and overall daily comfort—all while maintaining maximum safety and stability.
Ideal For Users Who
- Experience swelling in the legs or feet, including users with diabetes
- Need to rest or take naps during the day
- Require frequent position changes for comfort and pressure relief
- Want a single wheelchair that supports sitting, standing, reclining, and lying down
Key Functional Capabilities

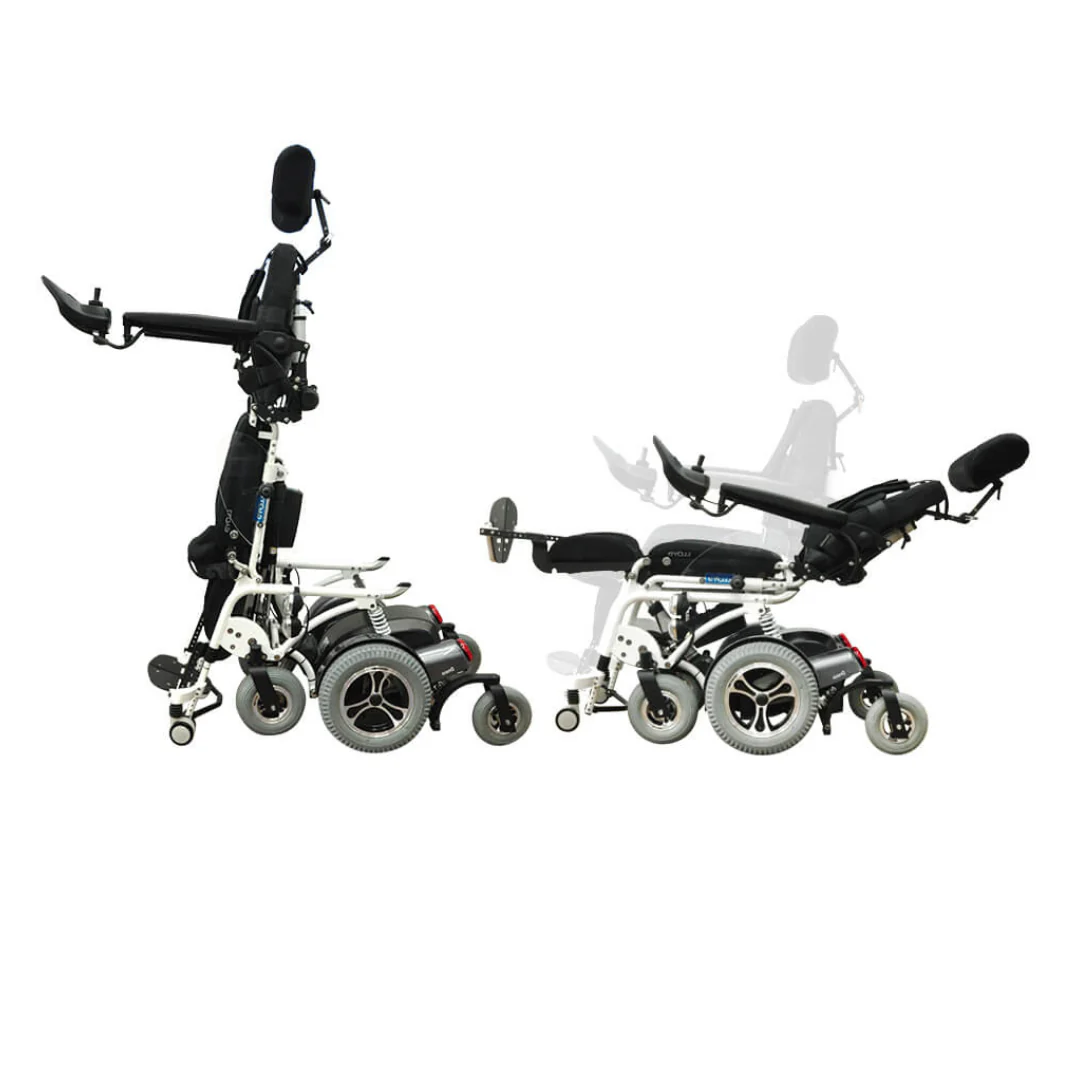

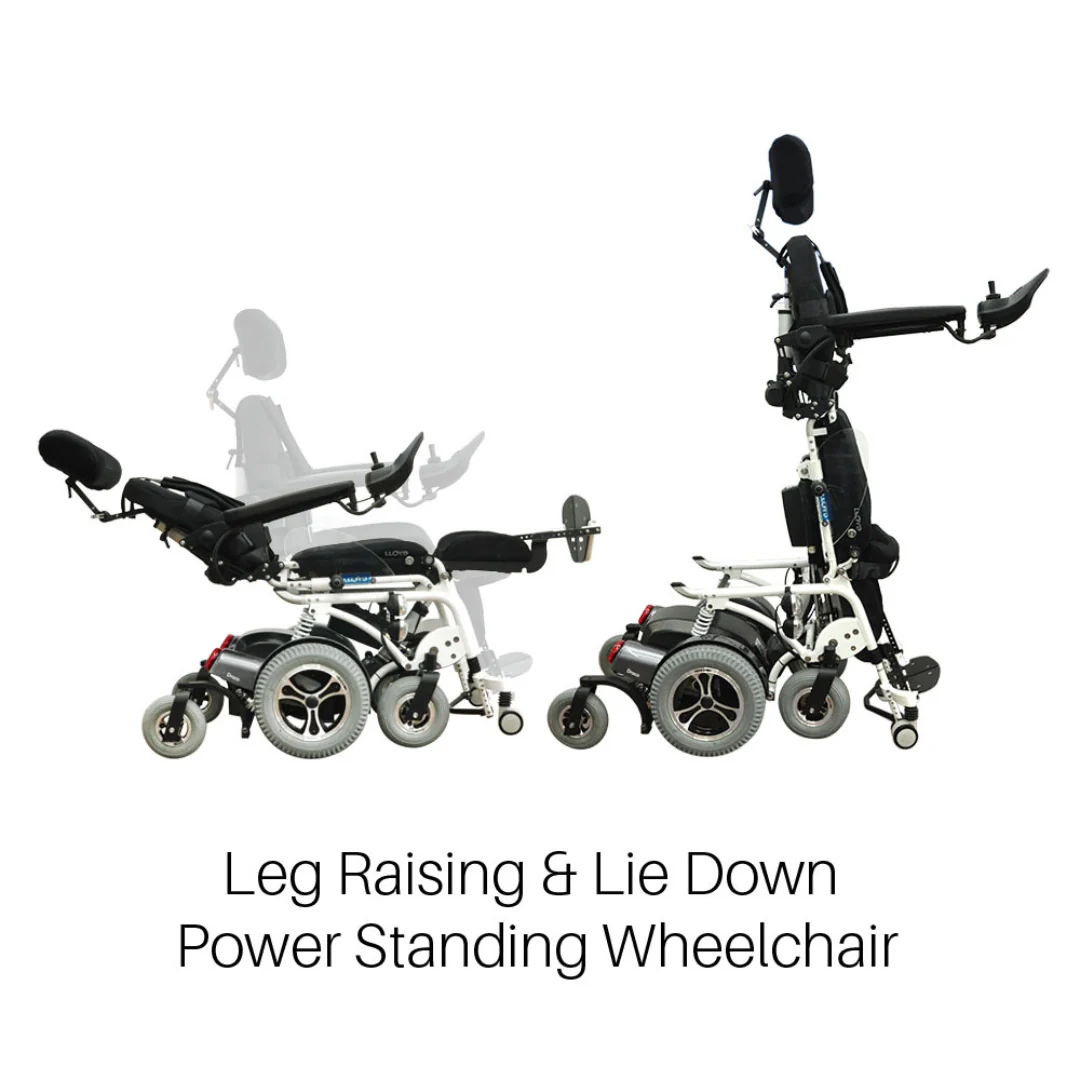

- Fully Powered Positioning: Smoothly transitions between sit, stand, recline, and full lie-down positions

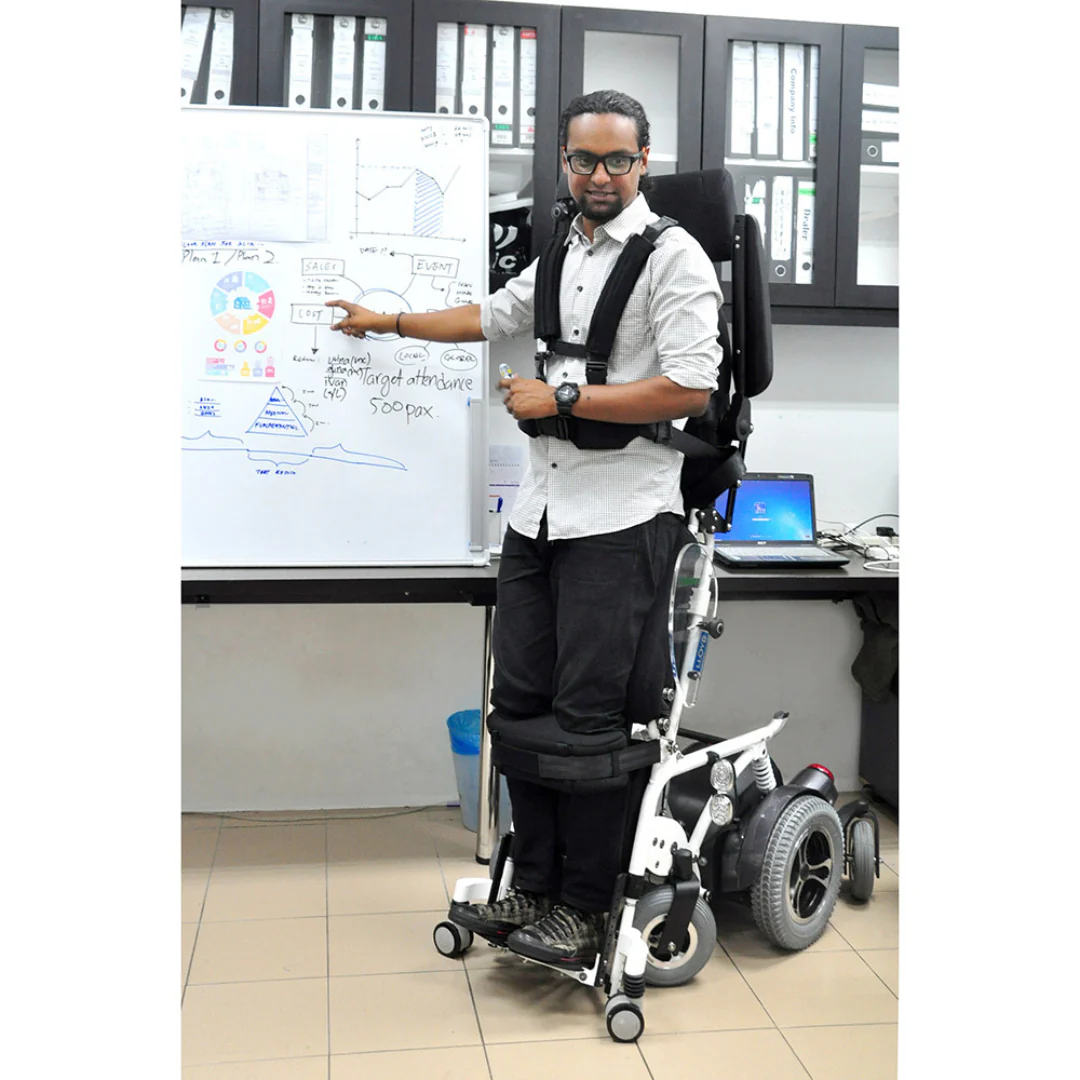

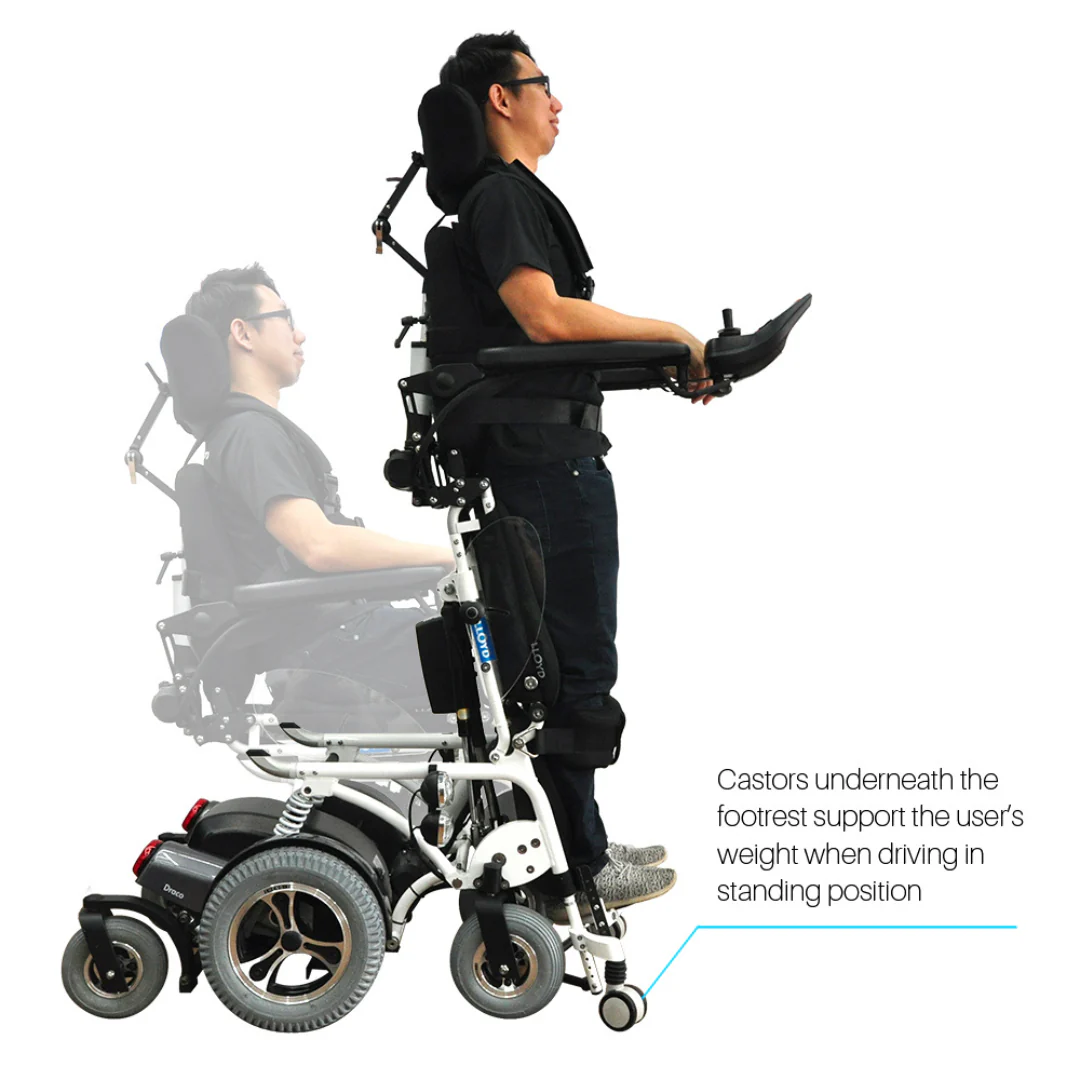

- Drive While Standing: Enables greater independence and accessibility
- Center-Mounted Drive Wheels: Provide a tight turning radius and enhanced maneuverability
- Automatic Safety Speed Reduction: Automatically slows when standing or reclining for added safety
Performance & Control
- 5-Speed Control System: Top speed up to 8 km/h (5 mph) for smooth, confident driving
- Extended Driving Range: Up to 30 km (18.5 miles) on a full charge
- Dynamic DX2 LED Graphic Display Controller: Provides precise control and real-time performance feedback
- Integrated Safety Sensors: Ensure controlled, stable operation in all driving and positioning modes
Comfort & Support Features
- Coordinated Movement System: Footrest, armrests, and backrest move together to reduce muscle strain during transitions
- Fully Adjustable Fit: Adjustable seat depth and footrest height accommodate different body sizes and leg lengths
- Adjustable Footrest Angle: Helps stretch calf muscles and tendons while standing
- Enhanced Cushioning: Three-layer foam seat cushion and supportive backrest provide all-day comfort
- Spring Suspension System: Delivers smoother rides over uneven terrain
- Adjustable & Removable Headrest: Allows personalized comfort and support
Safety & Stability
- 8-Wheel Base Design: Delivers exceptional stability, especially in reclined or lying positions
- Comprehensive Safety Straps: Includes knee, calf, chest straps, and a safety belt
- Optional Safety Upgrades: Thigh strap, ankle strap, and H-shape harness available
- Aircraft-Grade Aluminum Alloy Frame: Built for superior strength, durability, and long-term reliability
Sizing Options
- Multiple Seat Widths: Available in 14″, 16″, and 18″ options
- Highly Adjustable Fit: Multiple adjustment points ensure a tailored fit for a wide range of users
Draco vs Phoenix vs Pegasus
| Feature | Draco | Phoenix | Pegasus |
|---|---|---|---|
| Type / Positioning | Full CapabilityPowered stand / sit / recline / lie down; can drive while standing | Power StandingPowered stand / sit; 25° recline; can drive while standing | Semi-PowerPowered stand / sit (armrest controller); geared for weaker hands/fingers |
| Best For | Users needing frequent position changes, leg elevation/pressure relief, and occasional daytime naps | Users wanting standing mobility + recline comfort in a travel-ready power standing chair | Users who like the Leo concept but need powered assist due to limited hand/finger strength |
| Drive Speed | Up to 5 mph (5-speed control) | Up to 5 mph (5-speed control) | Not specified |
| Range | Up to 18.5 miles per charge | Up to 18.5 miles per charge | Not specified |
| Controller | Dynamic DX2 LED graphic display controller + safety sensors | Dynamic Shark controller + safety sensors | Small stand/sit controller at armrest tip (one-finger control) |
| Stability | 8 wheels for added stability, especially when lying down | Not specified | Rear wheel suspension via polyurethane blocks |
| Turning / Maneuvering | Center-mounted drive wheels for a tighter turning radius | Auto slow-down when not seated for safety | Quick-release wheels; folds for trunk transport |
| Seat Width Options | 14", 16", 18" | 14", 16", 18" | 14", 16", 18" |
| Adjustability | Seat depth + footrest height + footrest angle; adjustable/removable headrest | Seat depth + footrest height + footrest angle; adjustable/removable headrest | Seat depth + footrest height + footrest angle; velcro-ready seat for your cushion |
| Safety Straps | Knee, calf, chest, safety belt (+ optional thigh/ankle/H-harness) | Knee, calves, chest, safety belt (+ optional thigh/ankle/H-harness) | Knee, chest, safety belt (+ optional thigh/ankle/H-harness) |
| Weight | Not specified | Not specified | 70.4 lb total; 59.4 lb with wheels removed |
| Warranty | Not specified | 2-year international warranty | Up to 5-year international warranty |
Draco
Type
Full capability: stand / sit / recline / lie down; can drive while standing
Speed
Up to 5 mph (5-speed control)
Range
Up to 18.5 miles per charge
Controller
Dynamic DX2 LED controller + safety sensors
Stability
8 wheels for stability when lying down
Sizing
14", 16", 18" seat widths
Phoenix
Type
Power standing: stand / sit + 25° recline; can drive while standing
Speed
Up to 5 mph (5-speed control)
Range
Up to 18.5 miles per charge
Controller
Dynamic Shark controller + safety sensors
Warranty
2-year international
Sizing
14", 16", 18" seat widths
Pegasus
Type
Semi-power stand/sit with one-finger armrest controller
Best For
Users with limited hand/finger strength who still want frequent standing
Portability
Quick-release wheels + fold-down backrest for trunk fit
Weight
70.4 lb total; 59.4 lb with wheels removed
Sizing
14", 16", 18" seat widths
Warranty
Up to 5-year international

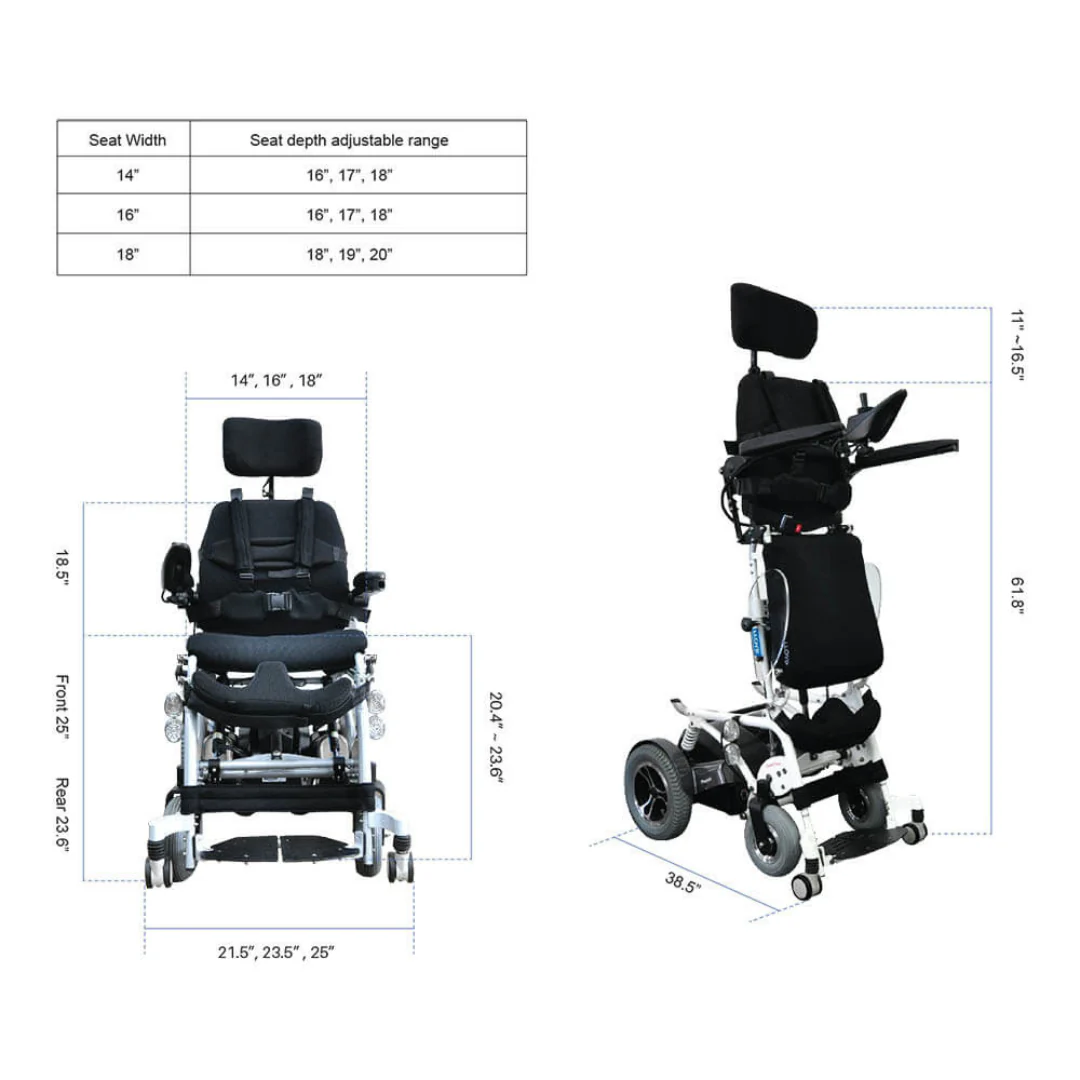

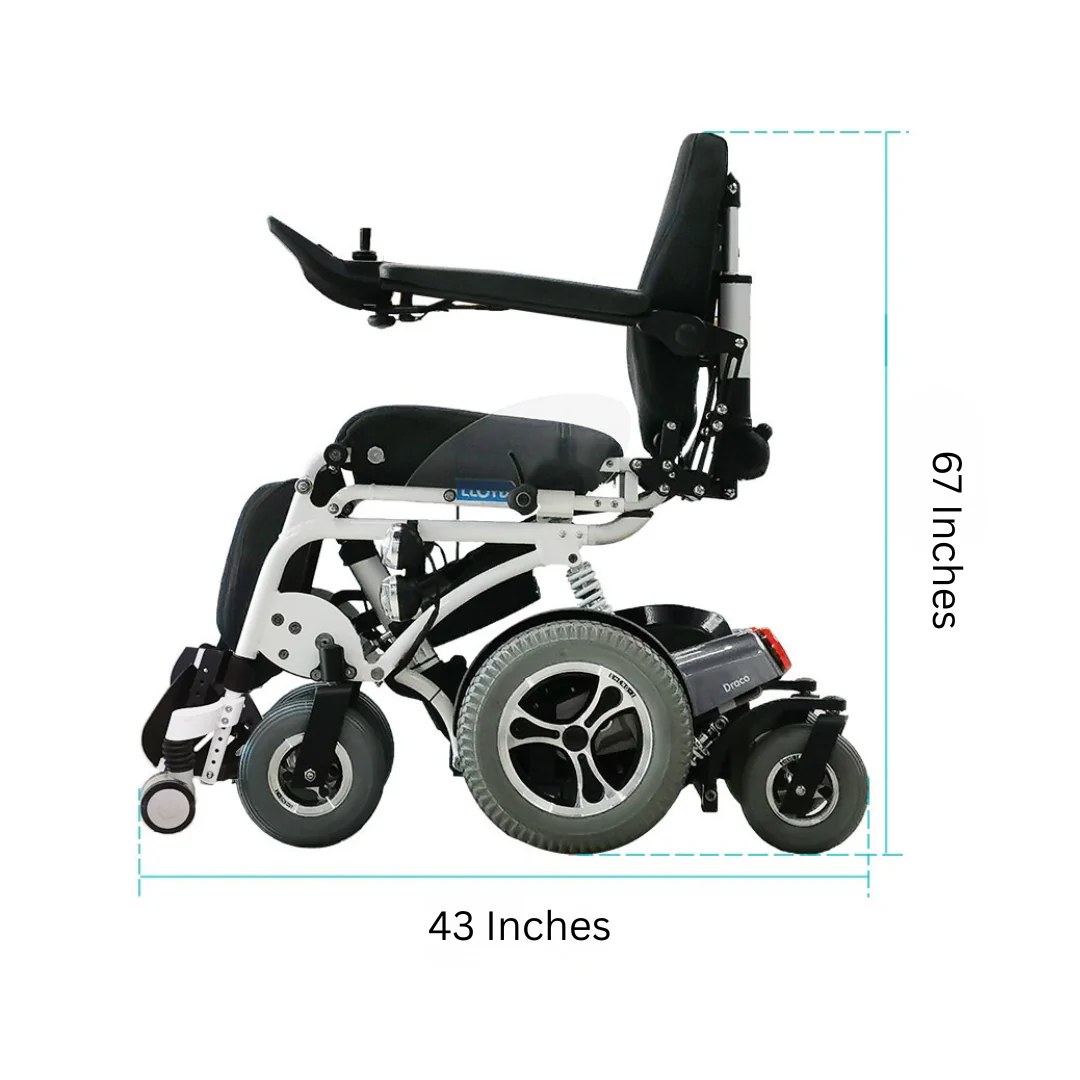

Specifications
Wheelchair Specifications
| Seat Width Choices | 14" | 16" | 18" |
|---|---|
| Seat Depth (Adjustable) | 15.7" – 20.5" (adjustable) |
| Backrest Height | 25.2" |
| Total Width | 16" seat: 25.4" • 18" seat: 27.4" |

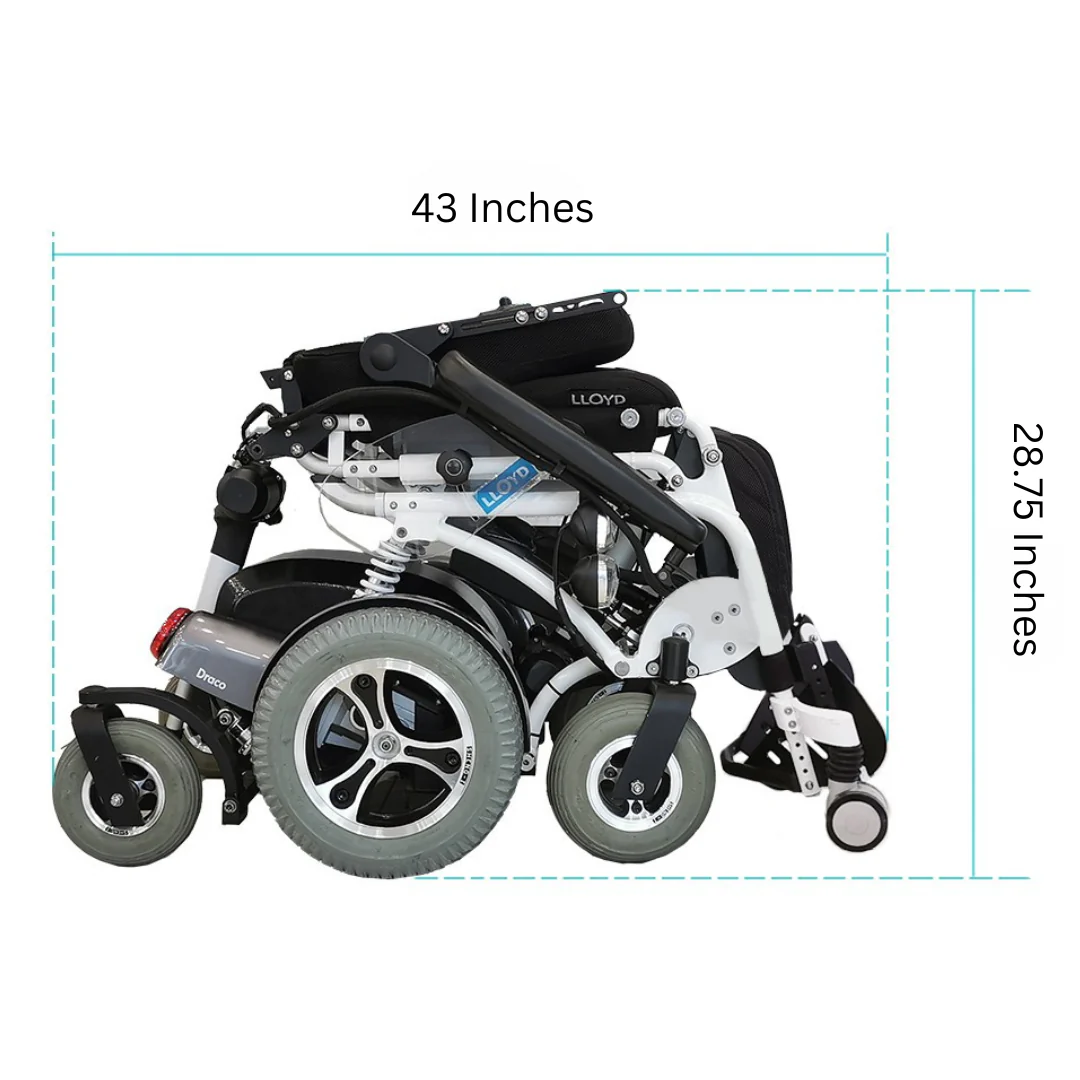

| Total Length | 45.3" |
| Total Height (Front) | With Headrest: 56.5" • Without Headrest: 46.5" |
| Total Weight | 14" seat: 324.1 lbs • 16" seat: 330.7 lbs • 18" seat: 337.3 lbs |
| Ground Clearance | 2.0" |
| Open Size 18" (L × W × H) | 44.9" × 29.5" × 55.9" |
| Open Size 16" (L × W × H) | 44.9" × 27.6" × 55.9" |
| Open Size 14" (L × W × H) | 44.9" × 25.6" × 55.9" |
| Footrest to Seat Length (Adjustable) | 17.5" – 20.5" (adjustable) |
| Motor | DC24V, 320W |
| Battery | 12V 36Ah × 2 pcs |

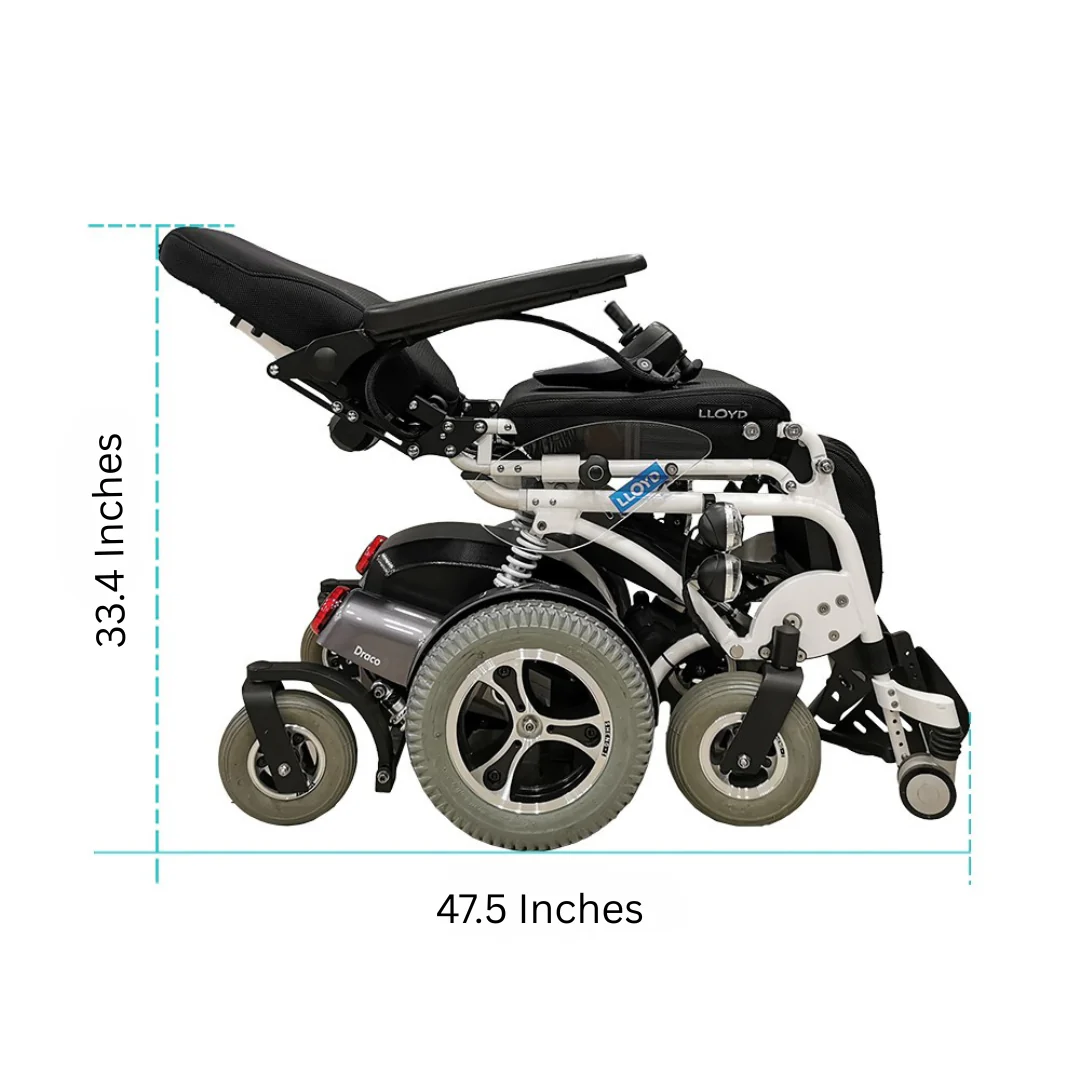

| Packing Dimension (W × L × H) | 14" seat: 42.9" × 26.0" × 36.6" 16" seat: 42.9" × 26.8" × 36.6" 18" seat: 42.9" × 28.3" × 36.6" |
| Package Weight | 341.7 lbs |
| Front Wheel | 9.5" |
| Mid Wheel | 13" |
| Rear Wheel | 3" |
Videos
Downloads
FAQs
Foldawheel Lloyd Draco Advanced Standing Power Wheelchair – Frequently Asked Questions (FAQ)
What makes the Draco different from other standing wheelchairs? +
The Draco is a full-capability power standing wheelchair. It allows users to sit, stand, recline, lie fully flat, and drive while standing—offering unmatched flexibility, comfort, and independence throughout the day.
Who is the Draco best suited for? +
The Draco is ideal for users who:
• Experience leg or foot swelling (including diabetic users)
• Need to rest or nap during the day
• Require frequent position changes for comfort or medical reasons
• Want maximum support, stability, and long-term seating comfort
• Experience leg or foot swelling (including diabetic users)
• Need to rest or nap during the day
• Require frequent position changes for comfort or medical reasons
• Want maximum support, stability, and long-term seating comfort

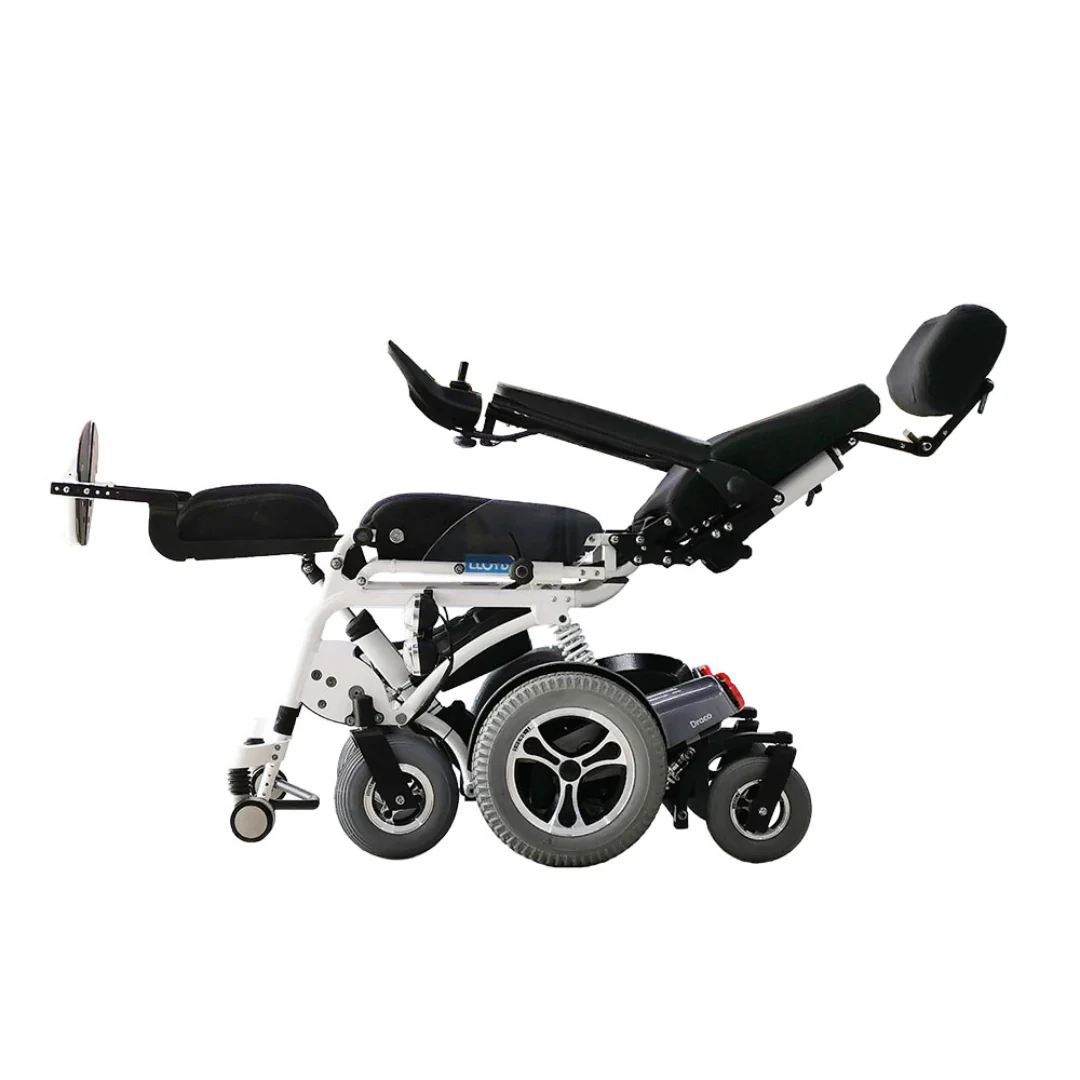

Can I lie down fully in the Draco? +
Yes. The Draco features fully powered lie-flat positioning, reducing the need for transfers and allowing users to safely rest or nap directly in the chair.
Can the Draco be driven while standing? +
Yes. The Draco allows controlled driving while standing, with automatic speed reduction for enhanced safety.
How safe is the Draco? +
Safety is a core design priority. The Draco includes:
• 8-wheel design for exceptional stability
• Automatic speed reduction when standing or reclining
• Dynamic DX2 LED controller with integrated safety sensors
• Aircraft-grade aluminum frame
• Safety straps for knees, calves, chest, and lap belt
Optional thigh straps, ankle straps, and H-style harnesses are also available.
• 8-wheel design for exceptional stability
• Automatic speed reduction when standing or reclining
• Dynamic DX2 LED controller with integrated safety sensors
• Aircraft-grade aluminum frame
• Safety straps for knees, calves, chest, and lap belt
Optional thigh straps, ankle straps, and H-style harnesses are also available.
What is the maximum driving speed? +
The Draco offers 5 selectable speed settings with a top speed of up to 8 km/h (5 mph) when seated.
What is the driving range? +
On a full charge, the Draco can travel up to 30 km (18.5 miles). Actual range may vary based on terrain, user weight, and usage conditions.
Is the seat size adjustable? +
Yes. The Draco is available in 14”, 16”, and 18” seat widths and features:
• Adjustable seat depth
• Adjustable footrest height
• Coordinated movement of footrest, armrests, and backrest to reduce muscle strain
• Adjustable seat depth
• Adjustable footrest height
• Coordinated movement of footrest, armrests, and backrest to reduce muscle strain
Is the footrest adjustable? +
Yes. The footrest angle is adjustable to help stretch calf muscles and tendons during standing and improve circulation.
Does the Draco provide a smooth ride? +
Absolutely. The Draco includes:
• Rear spring suspension
• Center-mounted drive wheels for a tight turning radius
• Three-layer foam seat and back cushions for pressure relief and comfort
• Rear spring suspension
• Center-mounted drive wheels for a tight turning radius
• Three-layer foam seat and back cushions for pressure relief and comfort
Is a headrest included? +
Yes. The Draco comes with an adjustable and removable headrest for added neck and head support.
Can the Draco reduce the need for caregiver transfers? +
Yes. Because the Draco allows users to sit, stand, recline, and lie down independently, it significantly reduces transfer needs and caregiver strain.
What warranty comes with the Draco? +
The Foldawheel Lloyd Draco includes an international warranty (terms may vary by region). Please refer to warranty documentation or contact us for full coverage details.
How does the Draco compare to the Phoenix model? +
• Choose Draco if you need lie-flat positioning and maximum functionality
• Choose Phoenix if you want standing and reclining features without full lie-down capability
• Choose Phoenix if you want standing and reclining features without full lie-down capability
Warranty
Warranty Coverage for Foldawheel Power Wheelchairs & Lloyd Standing Wheelchairs
Warranty coverage is valid only when all related payments have been paid in full.
Frame Structure — 5-Year Warranty
Our wheelchairs are built using high-quality materials and expert craftsmanship to ensure long-term durability. If a frame defect occurs under normal use, replacement parts will be provided. Customers are responsible for shipping costs associated with frame replacements.
Motors, Controller & Charger — 2-Year Warranty
All electronic components are covered for two years. Defective parts will be replaced with new components at no cost. Shipping for replacement electronic parts is covered by us. In some cases, defective parts may be required to be returned.
Battery — 1-Year Warranty
High-quality lithium-ion batteries are covered against manufacturing defects for one year from the date of purchase.
Wear & Tear Items — Not Covered
Normal wear items are not included under warranty. These include, but are not limited to:
-
Storage or travel bags
-
Armrest pads
-
Cables
-
Nuts and bolts
-
Tires and bearings
-
Backrests and seat cushions
Replacement wear-and-tear parts are available for purchase at reasonable prices.
Select Choose Seat Width
Select Choose Joystick Side
From $4,394.70
Original: $14,649.00
-70%Foldawheel Lloyd Draco Advanced Standing Power Wheelchair—
$14,649.00
$4,394.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Draco Standing Wheelchair is a premium electric standing wheelchair designed to deliver complete, all-in-one mobility. It allows users to safely drive, stand, sit, recline, and fully lie down, all within a single chair. This versatility reduces the need for manual transfers and minimizes caregiver effort throughout the day. With the added ability to recline into a flat resting position, Draco also enables users to take comfortable naps, promoting better circulation, pressure relief, and overall daily comfort—all while maintaining maximum safety and stability.
Ideal For Users Who
- Experience swelling in the legs or feet, including users with diabetes
- Need to rest or take naps during the day
- Require frequent position changes for comfort and pressure relief
- Want a single wheelchair that supports sitting, standing, reclining, and lying down
Key Functional Capabilities
- Fully Powered Positioning: Smoothly transitions between sit, stand, recline, and full lie-down positions
- Drive While Standing: Enables greater independence and accessibility
- Center-Mounted Drive Wheels: Provide a tight turning radius and enhanced maneuverability
- Automatic Safety Speed Reduction: Automatically slows when standing or reclining for added safety
Performance & Control
- 5-Speed Control System: Top speed up to 8 km/h (5 mph) for smooth, confident driving
- Extended Driving Range: Up to 30 km (18.5 miles) on a full charge
- Dynamic DX2 LED Graphic Display Controller: Provides precise control and real-time performance feedback
- Integrated Safety Sensors: Ensure controlled, stable operation in all driving and positioning modes
Comfort & Support Features
- Coordinated Movement System: Footrest, armrests, and backrest move together to reduce muscle strain during transitions
- Fully Adjustable Fit: Adjustable seat depth and footrest height accommodate different body sizes and leg lengths
- Adjustable Footrest Angle: Helps stretch calf muscles and tendons while standing
- Enhanced Cushioning: Three-layer foam seat cushion and supportive backrest provide all-day comfort
- Spring Suspension System: Delivers smoother rides over uneven terrain
- Adjustable & Removable Headrest: Allows personalized comfort and support
Safety & Stability
- 8-Wheel Base Design: Delivers exceptional stability, especially in reclined or lying positions
- Comprehensive Safety Straps: Includes knee, calf, chest straps, and a safety belt
- Optional Safety Upgrades: Thigh strap, ankle strap, and H-shape harness available
- Aircraft-Grade Aluminum Alloy Frame: Built for superior strength, durability, and long-term reliability
Sizing Options
- Multiple Seat Widths: Available in 14″, 16″, and 18″ options
- Highly Adjustable Fit: Multiple adjustment points ensure a tailored fit for a wide range of users
Draco vs Phoenix vs Pegasus
| Feature | Draco | Phoenix | Pegasus |
|---|---|---|---|
| Type / Positioning | Full CapabilityPowered stand / sit / recline / lie down; can drive while standing | Power StandingPowered stand / sit; 25° recline; can drive while standing | Semi-PowerPowered stand / sit (armrest controller); geared for weaker hands/fingers |
| Best For | Users needing frequent position changes, leg elevation/pressure relief, and occasional daytime naps | Users wanting standing mobility + recline comfort in a travel-ready power standing chair | Users who like the Leo concept but need powered assist due to limited hand/finger strength |
| Drive Speed | Up to 5 mph (5-speed control) | Up to 5 mph (5-speed control) | Not specified |
| Range | Up to 18.5 miles per charge | Up to 18.5 miles per charge | Not specified |
| Controller | Dynamic DX2 LED graphic display controller + safety sensors | Dynamic Shark controller + safety sensors | Small stand/sit controller at armrest tip (one-finger control) |
| Stability | 8 wheels for added stability, especially when lying down | Not specified | Rear wheel suspension via polyurethane blocks |
| Turning / Maneuvering | Center-mounted drive wheels for a tighter turning radius | Auto slow-down when not seated for safety | Quick-release wheels; folds for trunk transport |
| Seat Width Options | 14", 16", 18" | 14", 16", 18" | 14", 16", 18" |
| Adjustability | Seat depth + footrest height + footrest angle; adjustable/removable headrest | Seat depth + footrest height + footrest angle; adjustable/removable headrest | Seat depth + footrest height + footrest angle; velcro-ready seat for your cushion |
| Safety Straps | Knee, calf, chest, safety belt (+ optional thigh/ankle/H-harness) | Knee, calves, chest, safety belt (+ optional thigh/ankle/H-harness) | Knee, chest, safety belt (+ optional thigh/ankle/H-harness) |
| Weight | Not specified | Not specified | 70.4 lb total; 59.4 lb with wheels removed |
| Warranty | Not specified | 2-year international warranty | Up to 5-year international warranty |
Draco
Type
Full capability: stand / sit / recline / lie down; can drive while standing
Speed
Up to 5 mph (5-speed control)
Range
Up to 18.5 miles per charge
Controller
Dynamic DX2 LED controller + safety sensors
Stability
8 wheels for stability when lying down
Sizing
14", 16", 18" seat widths
Phoenix
Type
Power standing: stand / sit + 25° recline; can drive while standing
Speed
Up to 5 mph (5-speed control)
Range
Up to 18.5 miles per charge
Controller
Dynamic Shark controller + safety sensors
Warranty
2-year international
Sizing
14", 16", 18" seat widths
Pegasus
Type
Semi-power stand/sit with one-finger armrest controller
Best For
Users with limited hand/finger strength who still want frequent standing
Portability
Quick-release wheels + fold-down backrest for trunk fit
Weight
70.4 lb total; 59.4 lb with wheels removed
Sizing
14", 16", 18" seat widths
Warranty
Up to 5-year international
Specifications
Wheelchair Specifications
| Seat Width Choices | 14" | 16" | 18" |
|---|---|
| Seat Depth (Adjustable) | 15.7" – 20.5" (adjustable) |
| Backrest Height | 25.2" |
| Total Width | 16" seat: 25.4" • 18" seat: 27.4" |
| Total Length | 45.3" |
| Total Height (Front) | With Headrest: 56.5" • Without Headrest: 46.5" |
| Total Weight | 14" seat: 324.1 lbs • 16" seat: 330.7 lbs • 18" seat: 337.3 lbs |
| Ground Clearance | 2.0" |
| Open Size 18" (L × W × H) | 44.9" × 29.5" × 55.9" |
| Open Size 16" (L × W × H) | 44.9" × 27.6" × 55.9" |
| Open Size 14" (L × W × H) | 44.9" × 25.6" × 55.9" |
| Footrest to Seat Length (Adjustable) | 17.5" – 20.5" (adjustable) |
| Motor | DC24V, 320W |
| Battery | 12V 36Ah × 2 pcs |
| Packing Dimension (W × L × H) | 14" seat: 42.9" × 26.0" × 36.6" 16" seat: 42.9" × 26.8" × 36.6" 18" seat: 42.9" × 28.3" × 36.6" |
| Package Weight | 341.7 lbs |
| Front Wheel | 9.5" |
| Mid Wheel | 13" |
| Rear Wheel | 3" |
Videos
Downloads
FAQs

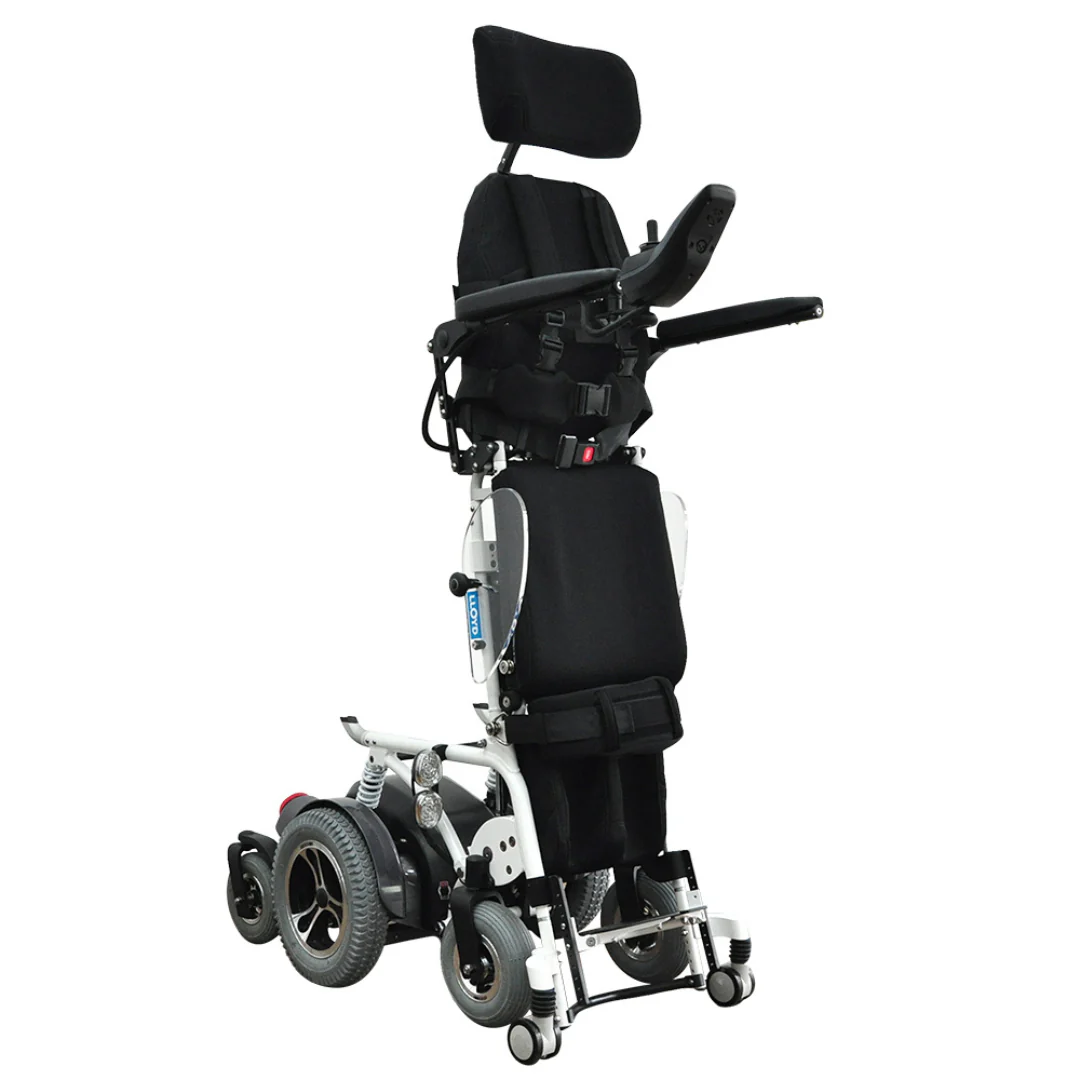

Foldawheel Lloyd Draco Advanced Standing Power Wheelchair – Frequently Asked Questions (FAQ)
What makes the Draco different from other standing wheelchairs? +
The Draco is a full-capability power standing wheelchair. It allows users to sit, stand, recline, lie fully flat, and drive while standing—offering unmatched flexibility, comfort, and independence throughout the day.
Who is the Draco best suited for? +
The Draco is ideal for users who:
• Experience leg or foot swelling (including diabetic users)
• Need to rest or nap during the day
• Require frequent position changes for comfort or medical reasons
• Want maximum support, stability, and long-term seating comfort
• Experience leg or foot swelling (including diabetic users)
• Need to rest or nap during the day
• Require frequent position changes for comfort or medical reasons
• Want maximum support, stability, and long-term seating comfort
Can I lie down fully in the Draco? +
Yes. The Draco features fully powered lie-flat positioning, reducing the need for transfers and allowing users to safely rest or nap directly in the chair.
Can the Draco be driven while standing? +
Yes. The Draco allows controlled driving while standing, with automatic speed reduction for enhanced safety.
How safe is the Draco? +
Safety is a core design priority. The Draco includes:
• 8-wheel design for exceptional stability
• Automatic speed reduction when standing or reclining
• Dynamic DX2 LED controller with integrated safety sensors
• Aircraft-grade aluminum frame
• Safety straps for knees, calves, chest, and lap belt
Optional thigh straps, ankle straps, and H-style harnesses are also available.
• 8-wheel design for exceptional stability
• Automatic speed reduction when standing or reclining
• Dynamic DX2 LED controller with integrated safety sensors
• Aircraft-grade aluminum frame
• Safety straps for knees, calves, chest, and lap belt
Optional thigh straps, ankle straps, and H-style harnesses are also available.
What is the maximum driving speed? +
The Draco offers 5 selectable speed settings with a top speed of up to 8 km/h (5 mph) when seated.
What is the driving range? +
On a full charge, the Draco can travel up to 30 km (18.5 miles). Actual range may vary based on terrain, user weight, and usage conditions.
Is the seat size adjustable? +
Yes. The Draco is available in 14”, 16”, and 18” seat widths and features:
• Adjustable seat depth
• Adjustable footrest height
• Coordinated movement of footrest, armrests, and backrest to reduce muscle strain
• Adjustable seat depth
• Adjustable footrest height
• Coordinated movement of footrest, armrests, and backrest to reduce muscle strain
Is the footrest adjustable? +
Yes. The footrest angle is adjustable to help stretch calf muscles and tendons during standing and improve circulation.
Does the Draco provide a smooth ride? +
Absolutely. The Draco includes:
• Rear spring suspension
• Center-mounted drive wheels for a tight turning radius
• Three-layer foam seat and back cushions for pressure relief and comfort
• Rear spring suspension
• Center-mounted drive wheels for a tight turning radius
• Three-layer foam seat and back cushions for pressure relief and comfort
Is a headrest included? +
Yes. The Draco comes with an adjustable and removable headrest for added neck and head support.
Can the Draco reduce the need for caregiver transfers? +
Yes. Because the Draco allows users to sit, stand, recline, and lie down independently, it significantly reduces transfer needs and caregiver strain.
What warranty comes with the Draco? +
The Foldawheel Lloyd Draco includes an international warranty (terms may vary by region). Please refer to warranty documentation or contact us for full coverage details.
How does the Draco compare to the Phoenix model? +
• Choose Draco if you need lie-flat positioning and maximum functionality
• Choose Phoenix if you want standing and reclining features without full lie-down capability
• Choose Phoenix if you want standing and reclining features without full lie-down capability
Warranty
Warranty Coverage for Foldawheel Power Wheelchairs & Lloyd Standing Wheelchairs
Warranty coverage is valid only when all related payments have been paid in full.
Frame Structure — 5-Year Warranty
Our wheelchairs are built using high-quality materials and expert craftsmanship to ensure long-term durability. If a frame defect occurs under normal use, replacement parts will be provided. Customers are responsible for shipping costs associated with frame replacements.
Motors, Controller & Charger — 2-Year Warranty
All electronic components are covered for two years. Defective parts will be replaced with new components at no cost. Shipping for replacement electronic parts is covered by us. In some cases, defective parts may be required to be returned.
Battery — 1-Year Warranty
High-quality lithium-ion batteries are covered against manufacturing defects for one year from the date of purchase.
Wear & Tear Items — Not Covered
Normal wear items are not included under warranty. These include, but are not limited to:
-
Storage or travel bags
-
Armrest pads
-
Cables
-
Nuts and bolts
-
Tires and bearings
-
Backrests and seat cushions
Replacement wear-and-tear parts are available for purchase at reasonable prices.
