Triangular Folding Design
No tools required — folds easily for compact storage and stands upright on its own. The lift can also be transported while folded for added convenience during travel or facility transfers.

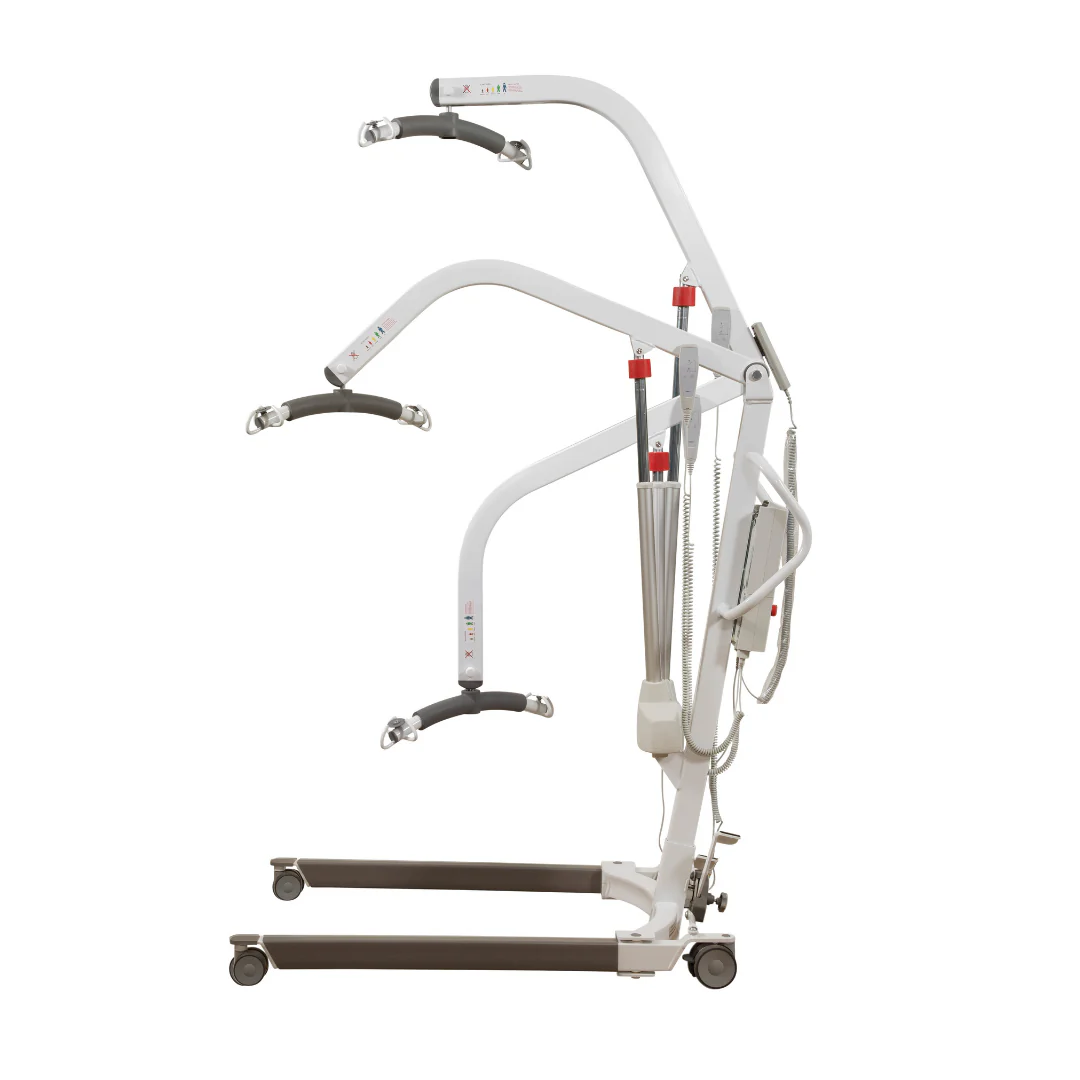

Joerns Hoyer Advance Professional Electric Patient Lift
The Hoyer Advance® Lift offers a compact design without compromising on performance. It supports a wide range of transfers, including lifting from the floor or moving patients onto healthcare beds with ease. Its uniquely tapered leg design enables the lift to navigate around wide obstacles, making it ideal for use with oversized chairs, bulky commodes, and wheelchairs. This thoughtful design also enhances safety and stability, ensuring the user feels secure throughout the transfer.
Key Features

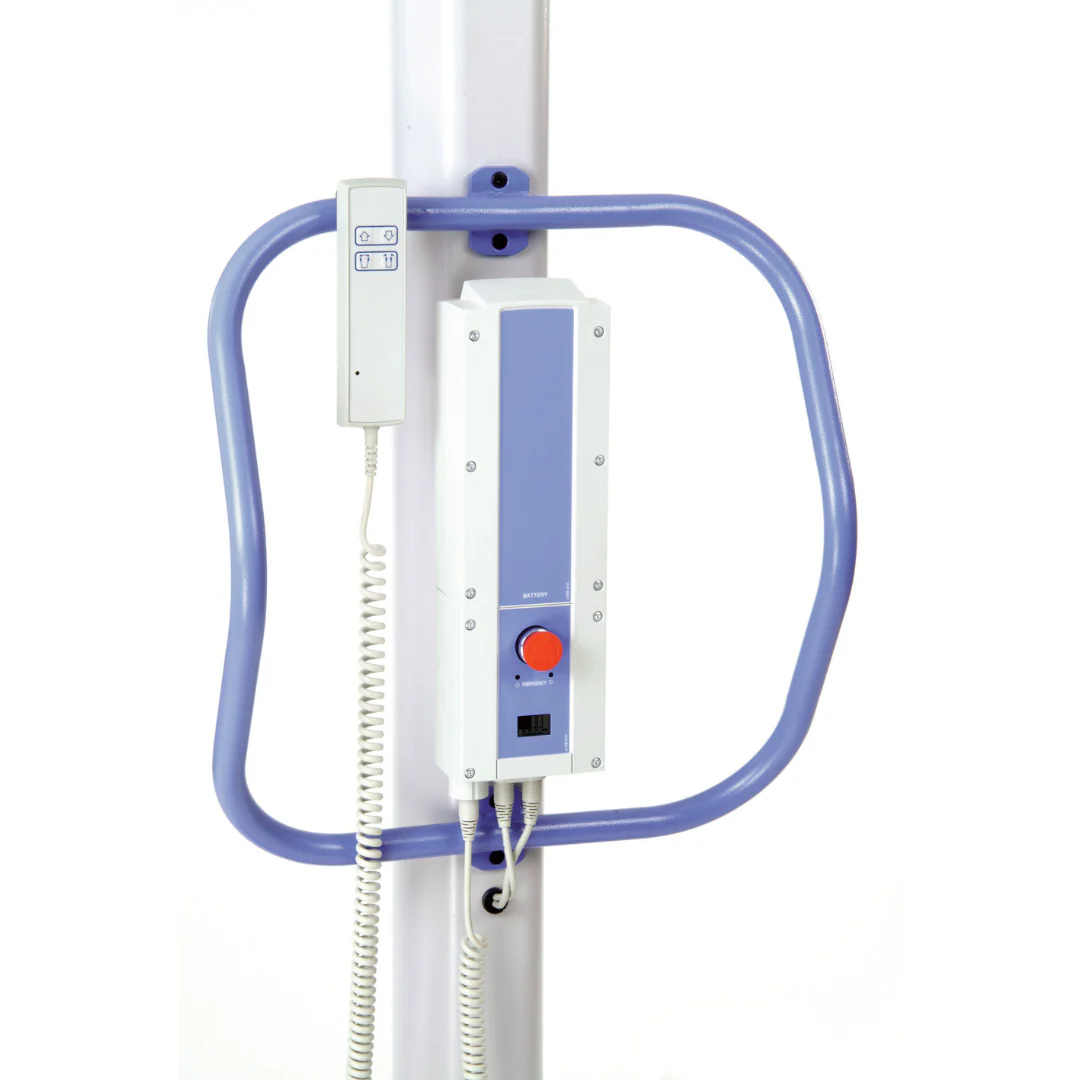

Ergonomic Push Handle
Features a large, contoured push handle for improved maneuverability and control while protecting the lift’s control system from accidental bumps or damage.
Angled Leg Design
The angled leg structure enhances stability when closed and expands easily to accommodate large chairs, commodes, wheelchairs, and other bulky equipment.
Transportation Transfers
Designed for vehicle transfers — can be transported while folded, making it ideal for moving patients to and from cars, vans, and other transport environments.
Highly Compact & Portable
This lightweight aluminum Hoyer lift folds quickly for easy storage or transport. The oversized handle and specialized wheels make it effortless to push and maneuver.
Multiple Transfer Options
Supports floor-to-bed, bed-to-chair, commode, shower seat, and vehicle transfers. Compatible with multiple sling types (sold separately) for customized care solutions.
Easy to Use

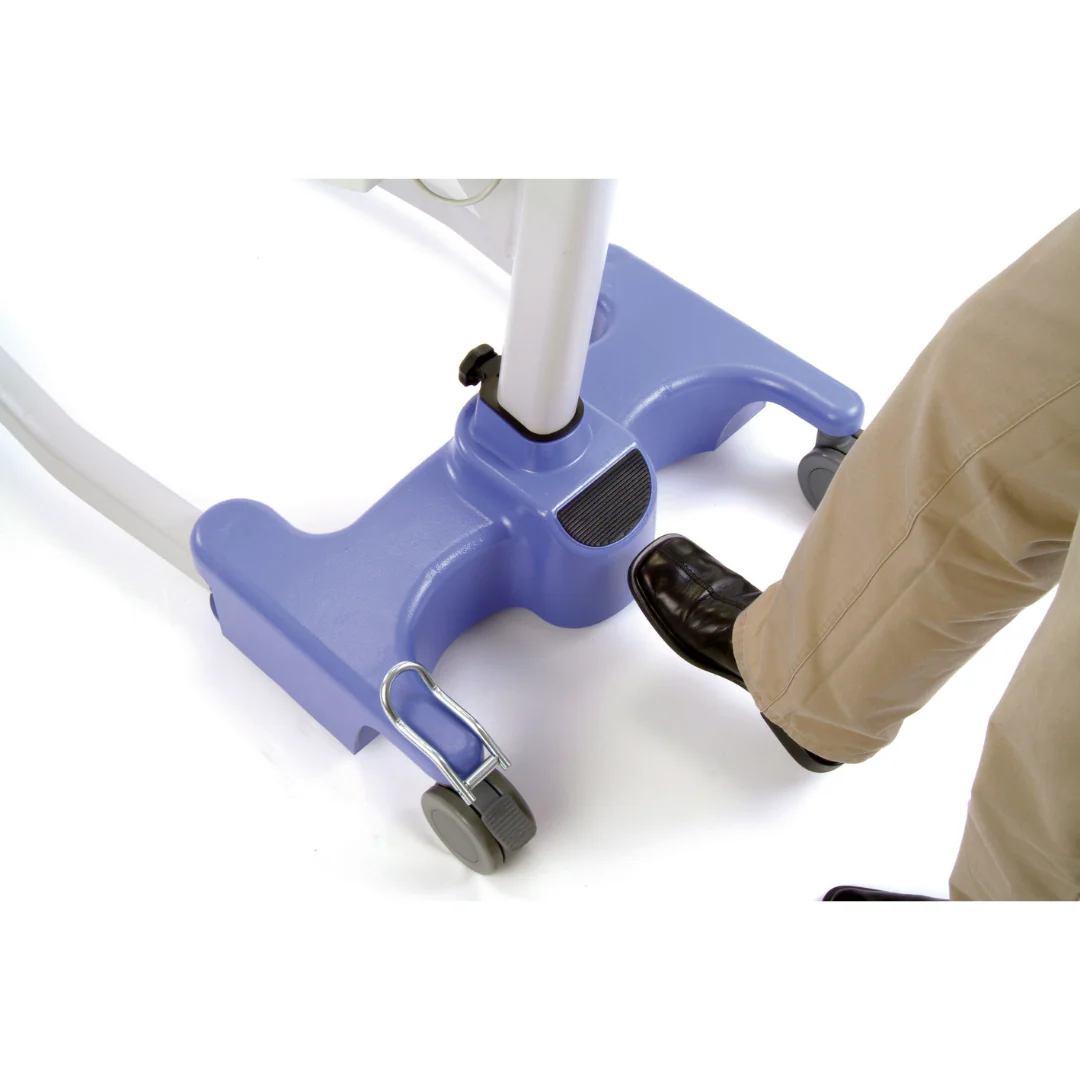

Swan-style legs allow closer patient access for comfortable and safe transfers. A foot-operated leg adjuster pedal enables quick width adjustments around furniture or wheelchairs.
Premium Build Quality
Constructed from lightweight aluminum, weighing just 69.9 lbs while supporting up to 340 lbs. Designed for stability, strength, and compatibility with a range of slings.
Trusted Hoyer Quality
From Joerns Healthcare, the industry leader in patient lift technology. The Hoyer line is trusted by hospitals, rehabilitation centers, and caregivers for reliability and long-term performance.
 – Front View](https://cdn.shopify.com/s/files/1/0727/3883/2607/files/Joerns_Hoyer_advance_E.png?v=1762890864)
Specifications
| Specification | Electric | Hydraulic |
|---|---|---|
| Safe Working Load | 341 lbs | 341 lbs |
| Maximum Overall Length | 51″ | 49.2″ |
| Minimum Overall Length | 49″ | 47.2″ |
| Maximum Overall Height | 73″ | 72.6″ |
| Minimum Overall Height | 53.5″ | 53.1″ |
| Folded Dimensions | ||
| Height | 17.1″ | 16.9″ |
| Depth | 46.4″ | 46.5″ |
| Width | 21.6″ | 23.0″ |
| Spreader Bar Max Height | 66.5″ | 64.6″ |
| Spreader Bar Min Height (Usable) | 15.3″ | 15.4″ |
| Height at Maximum Reach | 46″ | 33.5″ |
| Reach at Maximum Height | 25.6″ | 28.0″ |
| Reach at Minimum Height | 13.7″ | 15.4″ |
| Maximum Reach* | 32.8″ | 33.5″ |
| Turning Radius | 55.9″ | 41.0″ |
| Legs Open – External Width | 42.5″ | 43.7″ |
| Legs Open – Internal Width | 39.3″ | 45.7″ |
| Legs Closed – External Width | 26.3″ | 25.2″ |
| Legs Closed – Internal Width | 22.4″ | 21.7″ |
| Overall Height of Legs | 4.5″ | 4.7″ |
| Ground Clearance | 1.1″ | 1.2″ |
| Front Twin Casters | 3.0″ | 3.0″ |
| Rear Braked Casters | 3.9″ | 4.0″ |
| Weights | ||
| Mast, Base & Boom Assembly | 63.1 lbs | 63.7 lbs |
| Power Pack | 6.2 lbs | N/A |
| Total Weight | 69.9 lbs | 59 lbs |
| Base Assembly (without battery) | 32.8 lbs | 32.9 lbs |
| Mast & Boom (without battery) | 30.9 lbs | 26.3 lbs |
Sling Options
Videos
Downloads
Download The Specifications Sheet
Warranty
HoyerPro® Lift Warranty Overview
Covered Products:
This warranty applies exclusively to HoyerPro® Lifts. The following models are not covered under this warranty:
-
HML400
-
HPL700 / HPL700WSC
-
HPL402
-
C-HLA (and all variations)
Warranty Coverage
-
Mechanical and Electrical Components:
Covered for 2 years from the date of delivery under normal use and service.
-
Aluminum Structural Components & Welds:
Covered for the lifetime of the product* from the date of delivery.
-
Wearable Parts (e.g., batteries, hydraulic pumps, casters):
Covered for 90 days from the date of delivery. Not included in the lifetime warranty.
Exclusions & Conditions
The lift is used in unsuitable environmental conditions
The product is not maintained per user/service instructions
Unauthorized alterations, modifications, or repairs are made
Warranty is void if:
Warranty does not cover damage resulting from misuse or improper maintenance.
Parts Replacement & Inspection
-
Replacement parts may be supplied, serviced, or replaced at Joerns Healthcare’s discretion.
-
Warranty replacement parts are only covered for the duration of the original product warranty.
-
Parts requested for inspection must be returned at the customer’s expense; credit is issued only after inspection confirms warranty eligibility.
Service Support
-
Most service needs can be addressed by the facility’s Maintenance Department with guidance from Joerns Healthcare Product Service.
-
Replacement parts can typically be shipped next-day air (customer pays shipping).
-
If a technician is required, Joerns Healthcare may dispatch one at their discretion.
-
Only Joerns Healthcare Product Service Department can authorize and dispatch technicians.
Eligibility
This warranty is valid only for the original purchaser of the equipment.
*Lifetime coverage applies only to aluminum structural components and welds under normal use.
$2,518.00
