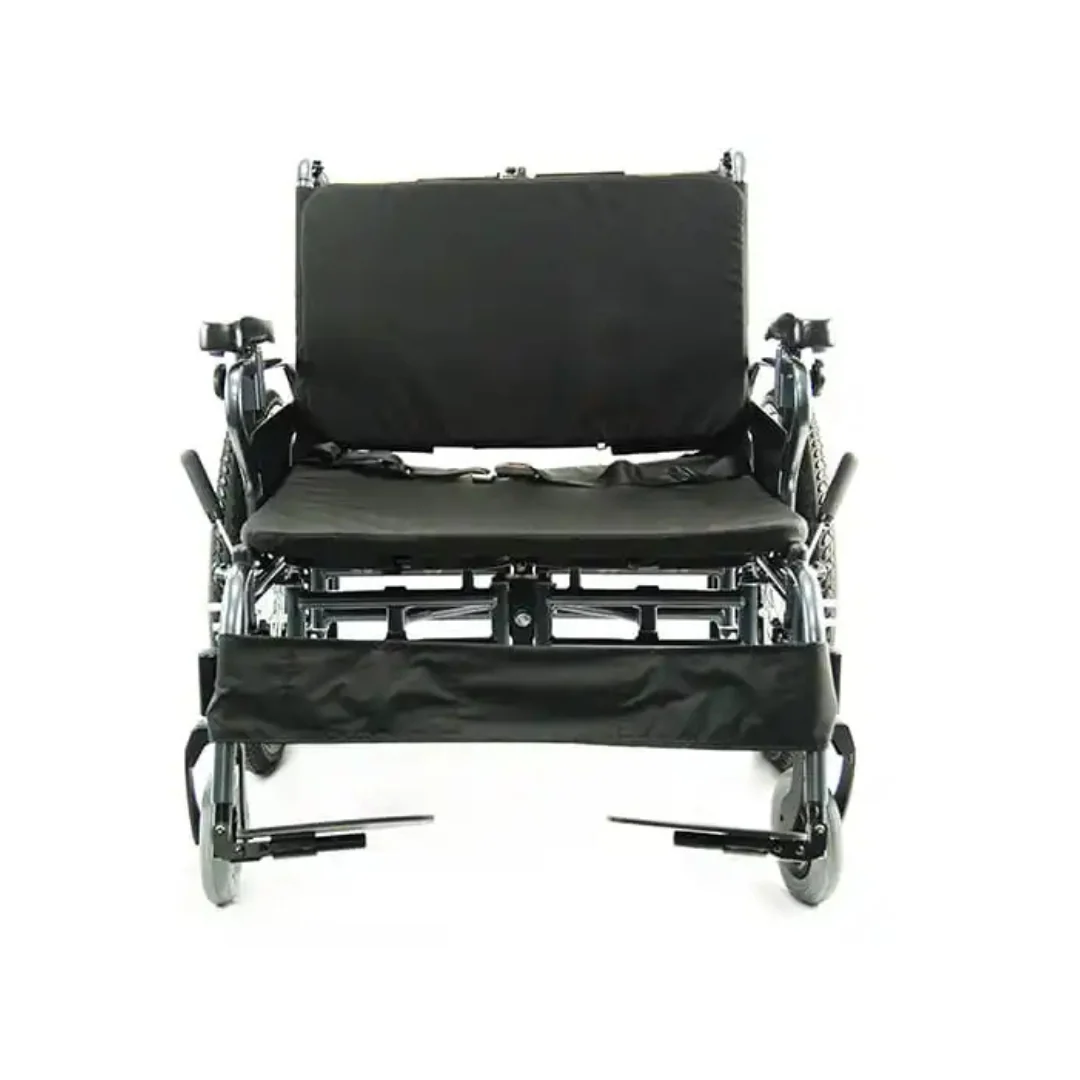

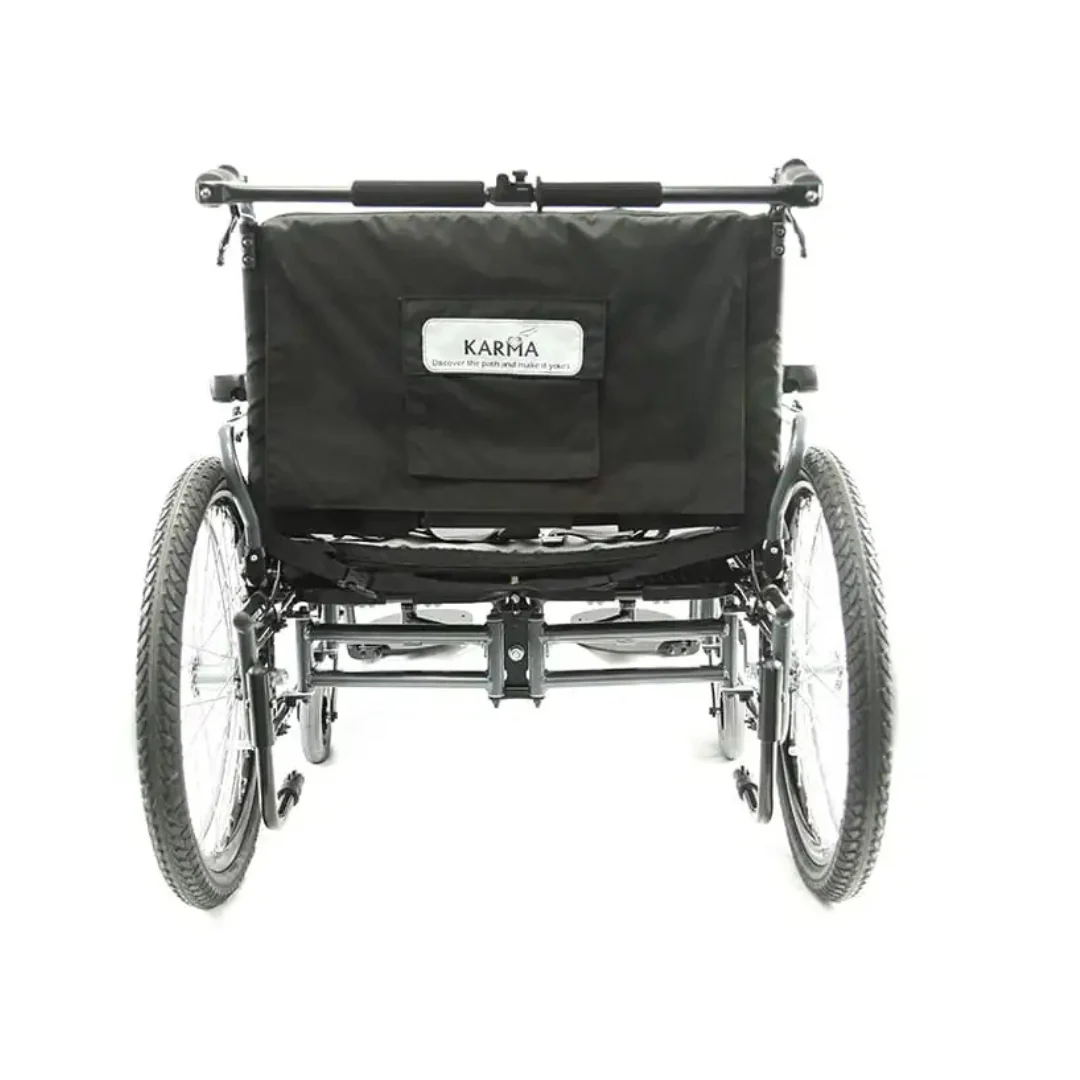

Karman KM-BT10 Extra Wide Wheelchair with All-Terrain Rear Wheels



BT10 Series – Adjustable Bariatric Heavy Duty Wheelchair



The BT10 Series was created to meet the growing demand for a highly adjustable bariatric wheelchair that goes beyond what standard models can offer. With a unique foldable pan-style seat and a robust heavy-duty frame, the BT10 is engineered for both indoor and outdoor use, supporting users up to 550 lbs with strength and stability.

Constructed from T6-6061 aircraft-grade aluminum combined with a reinforced steel seat pan, the BT10 delivers exceptional durability while remaining lighter than most bariatric wheelchairs on the market. Its design allows for a wide range of customization and configuration options, ensuring it can be tailored to the individual’s needs while also allowing room for future adjustments.



BT10 Series Key Features

• Heavy-Duty Support: Durable frame supports up to 550 lbs.

• Foldable Design: Strong yet portable frame makes storage and transport easier.

• Energy-Saving Self-Propel: Designed for smoother, more efficient mobility.

• Ergonomic Armrests: Fully detachable, flip-back armrests for comfort and easy transfers.

• Versatile Footrests: Swing-away, detachable footrests with multi-directional adjustments for personalized support.

• Bracing Bar: Provides extra frame strength and helps attendants maneuver the wheelchair.

• Swing-Away Anti-Tippers: Unique design enhances safety without compromising convenience.

• Custom Fit Seating: Prescription-based seat and back system adapts to different body sizes and needs.

• Back Angle Adjustments: Adjustable at -5°, 0°, 5°, 10°, and 15° for optimal comfort.

• Seat Depth Options: Available in 18″, 20″, 22″, and 24″.

• Seat-to-Floor Height: Adjustable from 15.5″ to 19.5″.

• Axle Plate Adjustability: Allows center of gravity adjustments for improved performance and stability.







As a custom-built wheelchair, the BT10 provides a personalized solution for long-term mobility requirements. Typical delivery time is 60–90 days



Specifications



• HCPCS Code: K0007

• Seat Widths: 22″, 24″, 26″, 28″, 30″

• Seat Depths: 18″/20″, 18″/24″

• Armrest Height: 10.5″ – 13.5″

• Seat Height: 19″

• Back Height: 17″

• Overall Height: 34″ – 38″

• Overall Open Width: 32″, 34″, 36″, 38″, 40″

• Folded Width: 15″ – 18″

• Overall Length: 47″

• Product Weight (without riggings): 63 lbs, 66 lbs, 69 lbs, 70 lbs, 73 lbs

• Weight Capacity: 550 lbs

• Shipping Dimensions: 48″ L × 40″ W × 44″ H





Videos



Downloads



Warranty

Thank you for purchasing a Karman product.

Please refer to the warranty card attached to each product for more information on policies and procedures. The warranty is extended only to the original purchase and delivery of the product. Warranty is not transferable. Parts or materials which are subjected to normal wear and tear which must be replaced / repaired are the owner’s responsibility.  Damaged caused by user negligence, accidental damages intentional or not are not covered under Factory warranty policy.  Arm pads and upholsteries are not covered by our warranty policy.   It is recommended that any claims under warranty be returned to the authorized dealer for service through whom it was purchased from.

If Warranty Registration Card is not on file for the claim product, then a copy of the invoice with the date of purchase must be provided.  The warranty period for the consumer commences on the purchase date of the seller.  the warranty period for the seller, if the products are not to be sold to a consumer, commences on the invoice date from Karman.  warranty is void on wheelchairs that have had the serial # tag removed and/or altered.

Furthermore, products which have been subjected to negligence, abuse, improper storage, or handling, improper operation, any modifications, misuse are not covered under the warranty policy.

All warranty repairs or replacements must have prior authorization from Karman with freight prepaid. Karman reserves the right to issue call tags for any warranty repairs, which is situation dependent. Should a field action or recall occur. Karman will identify the affected units and contact your Karman dealer with instructions for resolution. Warranty registration are still advised.  To ensure records are quickly retrieved with corresponding customer and serial number for your medical equipment. Thank you for filling out this form.  Please see RMA policy for further details, rules, and restrictions. Warranty applies in the U.S.A. only.

Register your Warranty

Product Warranty

Ergonomic Wheelchairs

PRODUCT	LIMITED LIFETIME FRAME	1 YEAR PARTS	1 YEAR FRAME	NO WARRANTY *Tires/Tubes *Upholstery/Pads *Handle Grips	PRODUCT SPECIFIC	WARRANTY CARD
S-ERGO 105	X	X		X		S-100 series Manual/Warranty
S-ERGO 106	X	X		X		S-100 series Manual/Warranty
S-ERGO 115	X	X		X		S-100 series Manual/Warranty
S-ERGO 125	X	X		X		S-100 series Manual/Warranty
S-ERGO 305	X	X		X		S-300 series Manual/Warranty
S-ERGO Flight	X	X		X		S-2512 series Manual/Warranty
S-ERGO Lite	X	X		X		S-2501 series Manual/Warranty
S-ERGO ATX	X	X		X		S-ERGO ATX Manual/Warranty
