Proactive Slings For Patient Lifts - All Styles

Proactive offers a complete selection of patient lift slings designed to meet the evolving needs of both long-term care facilities and homecare environments. Built to industry standards, these slings provide the ease of use, comfort, and security that caregivers and patients expect from every Proactive product.

Selecting the correct sling size and style—and ensuring it is fitted properly before lifting—is essential for the safety of both the patient and the caregiver. This guide is designed to help caregivers choose the appropriate sling on a patient-by-patient basis by outlining key considerations for proper sling selection. Proactive Medical is committed to promoting safe and effective patient handling practices.

Spreader Bar Options

2-, 4-, and 6-Point Spreader Bars

These versatile multi-point spreader bars can be used with chain connections or with slings that feature webbing loops, offering broad compatibility across standard patient lifting equipment.

Compatible With Loop-Style Slings

Loop-style slings are the most widely used and allow caregivers to fine-tune patient positioning by selecting different colored loops for the legs and shoulders.

Adjustable Back Positioning

Shoulder attachment straps determine the patient’s upper-body positioning—from upright, to semi-reclined, to fully reclined—ensuring optimal support for clinical needs.

Controlled Hip Flexion

Leg straps influence hip flexion angles, typically ranging between 45° and 90°, helping caregivers achieve safe and comfortable lifting postures.

Compatibility Guidance

For precise matching of hoists, spreader bars, and slings, consult the official Sling & Hoist Compatibility Guide to ensure maximum safety and proper performance.

Positioning Tip

The shorter the shoulder straps, the more upright the patient will sit—use this to fine-tune posture during transfers.

2-Point Cradles (Chain & S-Hook Slings)

Designed for Chain & S-Hook Slings

Built specifically for slings that use chains and S-hooks, allowing caregivers to easily adjust positioning by attaching to different chain links.

Clear Chain Link Orientation

The red-marked chain link identifies the correct connection point to the cradle, ensuring safe and consistent setup.

Back Angle Adjustability

The shoulder chain determines the patient’s back angle—ranging from upright to semi-reclined to fully reclined.

Hip Flexion Adjustments

Adjustments to the leg chains control hip flexion angle, helping caregivers maintain proper positioning and patient comfort.

Safe S-Hook Orientation

S-hooks must be inserted through the metal sleeve from the patient side outward to prevent injury and ensure secure sling attachment.

Positioning Tip

The shorter the shoulder chain, the more upright the patient will sit.

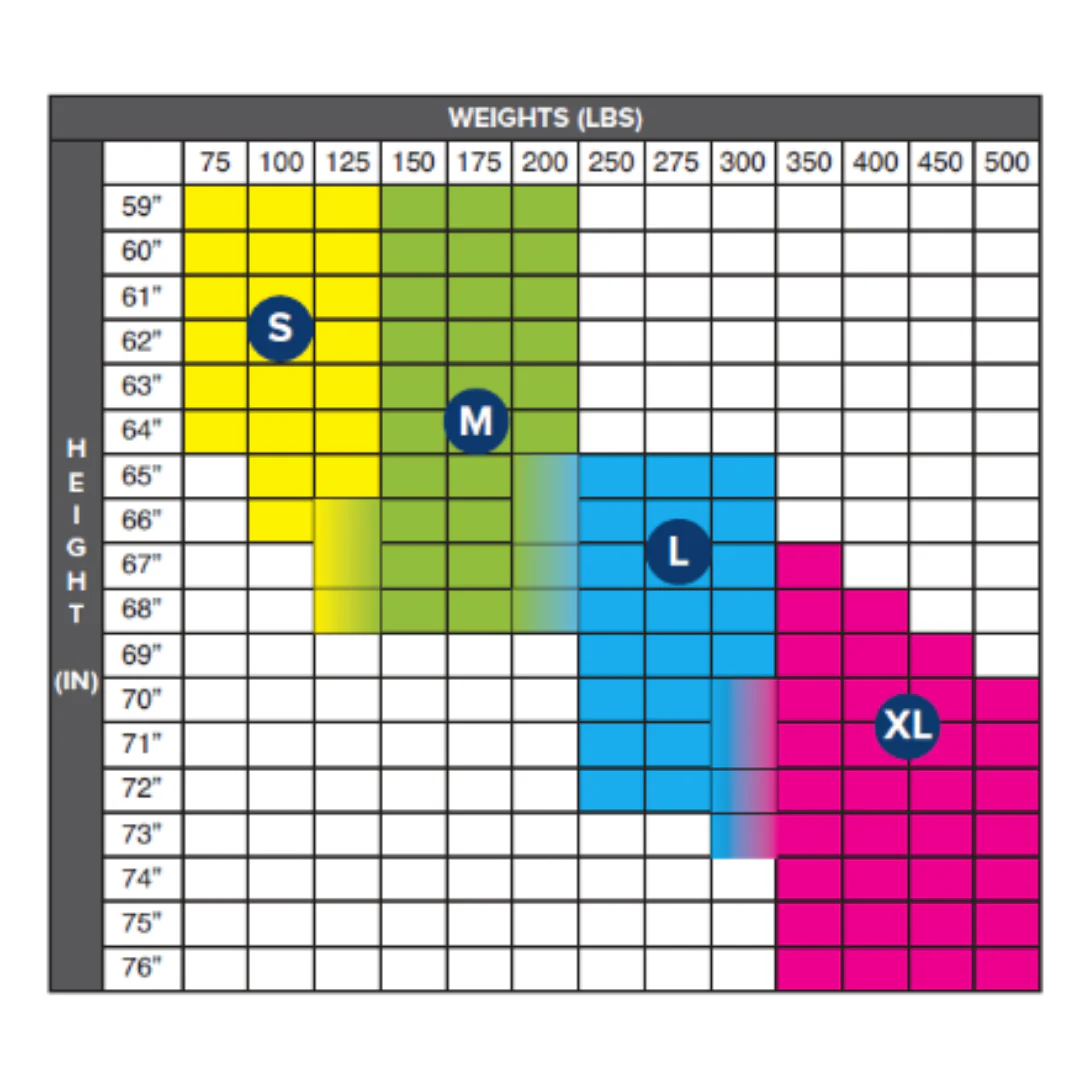

Sling Size Guide

Size	Low Weight (lbs)	High Weight (lbs)	Range (lbs)	Height Range
Small (S)	75	150	75 lbs.	59” – 64”
Medium (M)	125	200	125 lbs.	63” – 68”
Large (L)	175	300	175 lbs.	67” – 72”
Extra Large (XL)	275	500	225 lbs.	71” – 76”
Extra Extra Large (XXL)	350	600	250 lbs.	Determine PRN





Sling Picture Chart



Letter	Sling Type

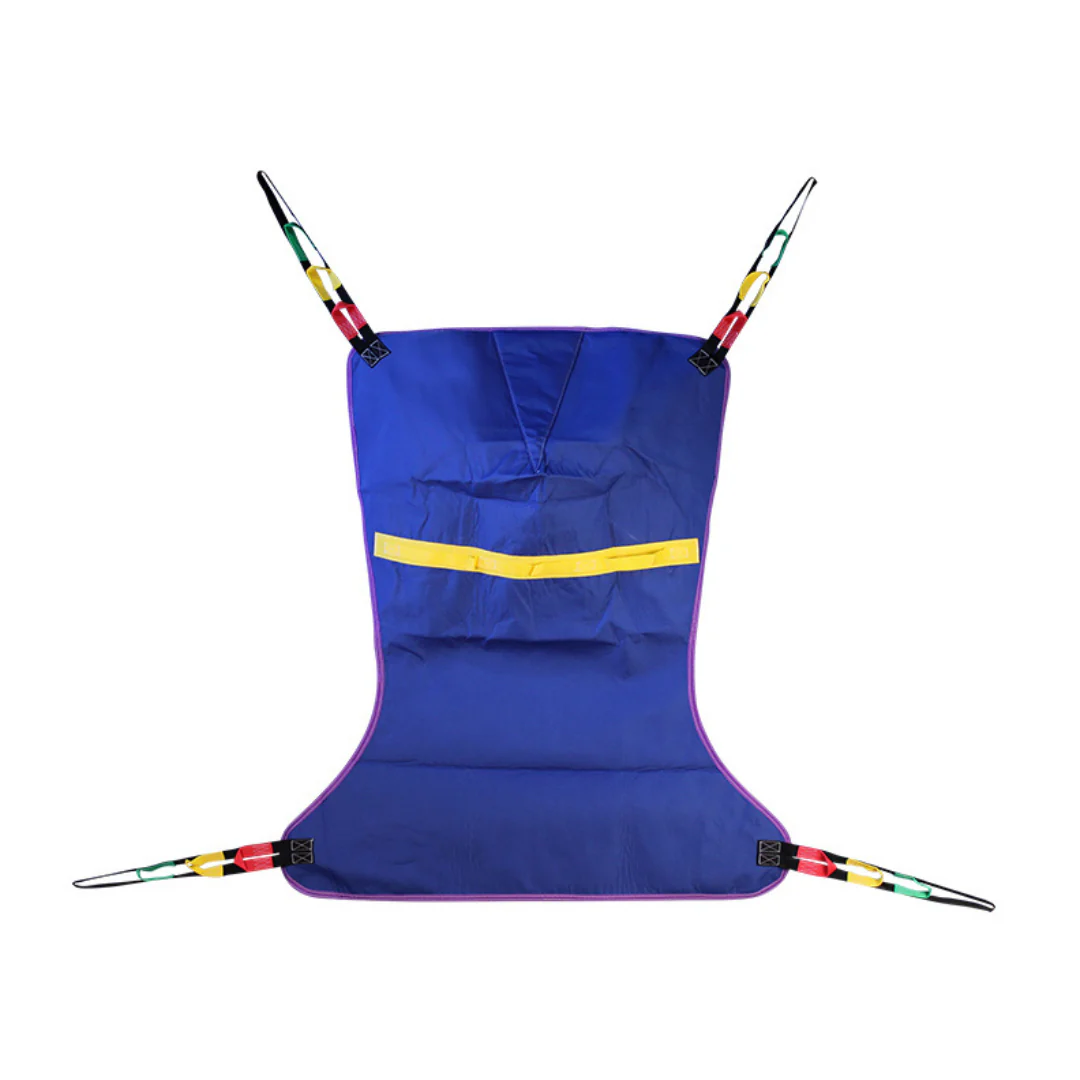

A	Full Body Slings
B	Divided Leg Slings without Head Support – Invacare Comparable
C	Divided Leg Slings with Head Support (Mesh) – Invacare Comparable
D	Padded Divided Leg Slings without Head Support (Mesh) – Invacare Comparable
E	Padded Divided Leg Slings without Head Support – Invacare Comparable
F	Padded Divided Leg Slings without Head Support – Hoyer Comparable
G	Padded Divided Leg Slings with Head Support – Hoyer Comparable

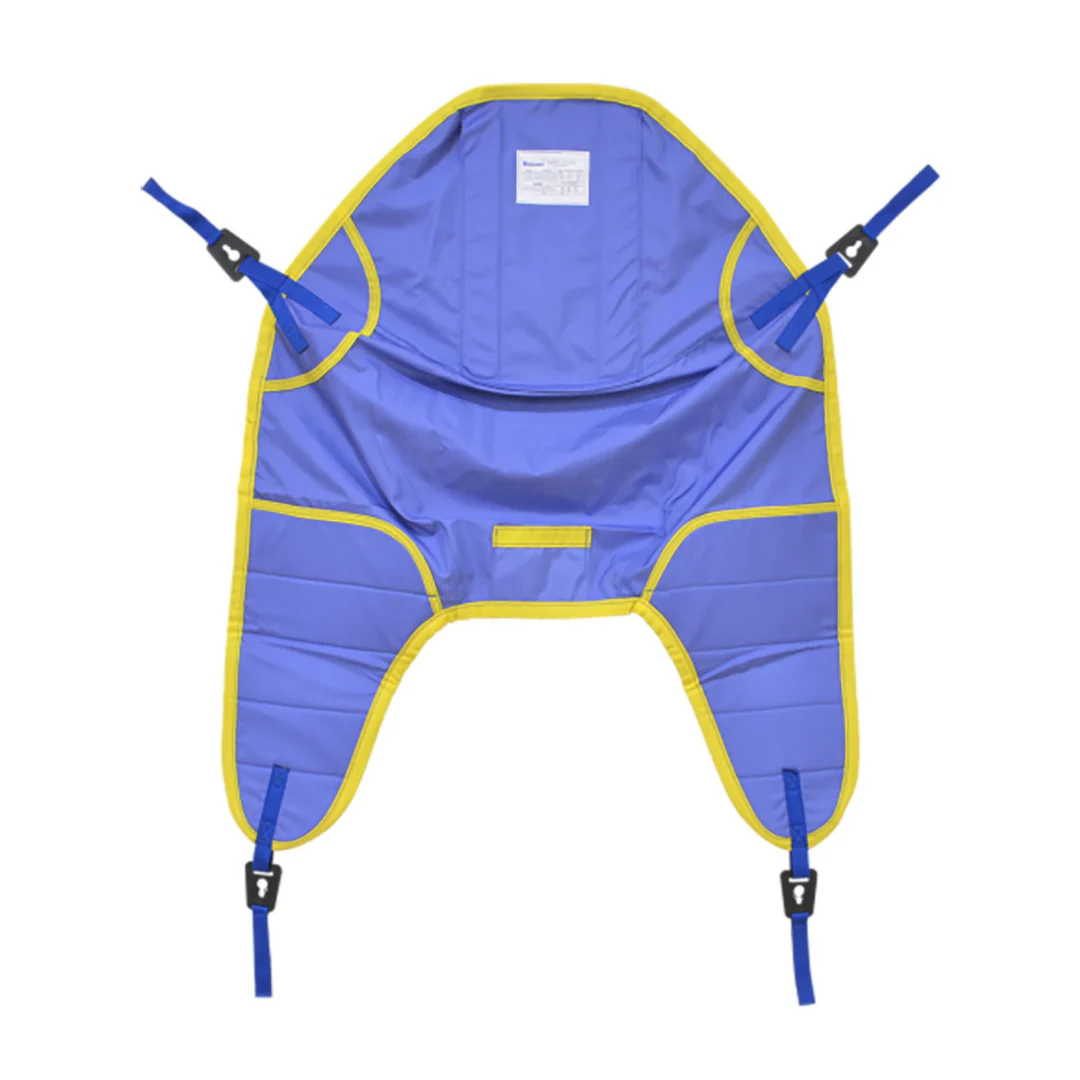

Ha & Hb	Liko Comparable Style Divided Leg Slings

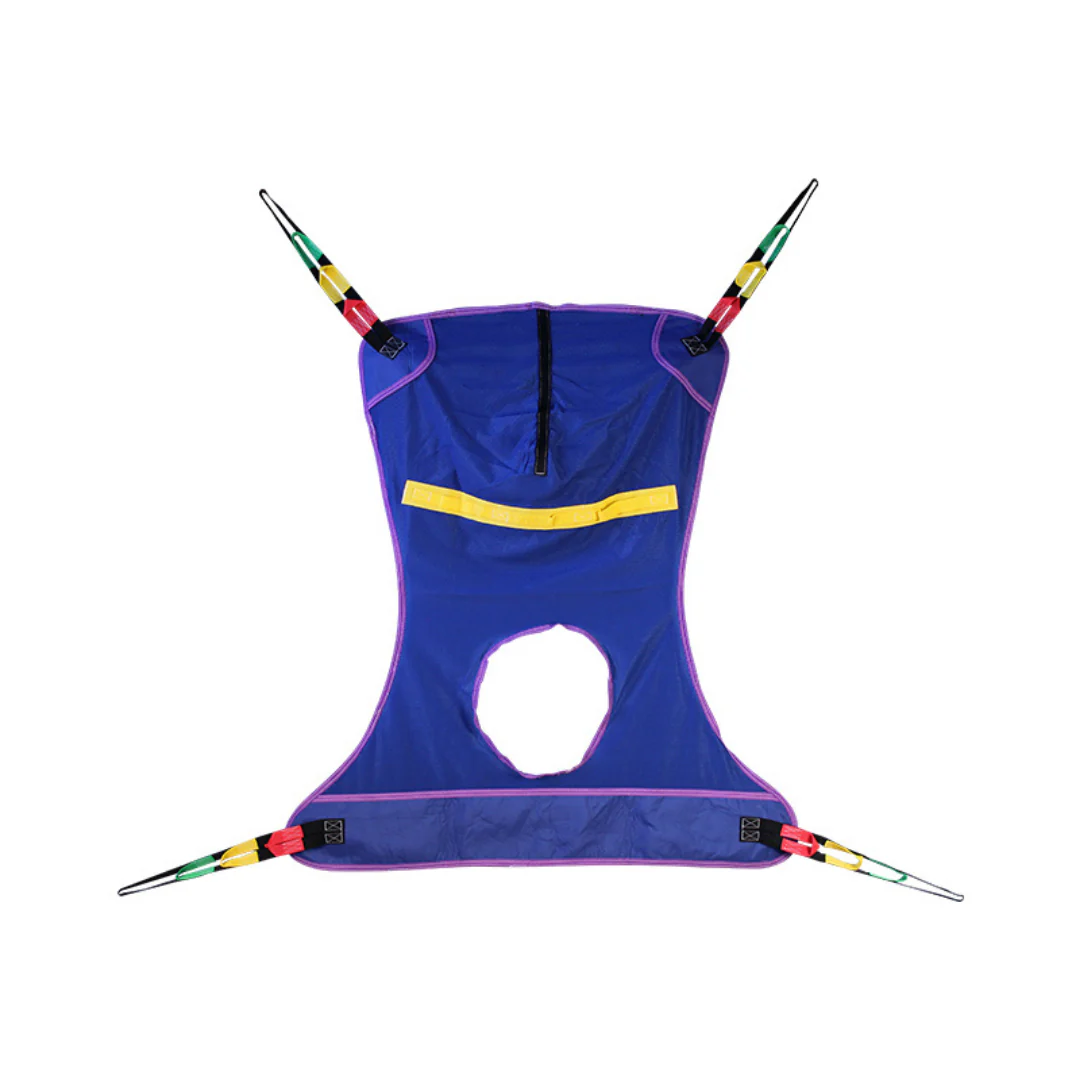

I	Toileting / Sani Padded Slings

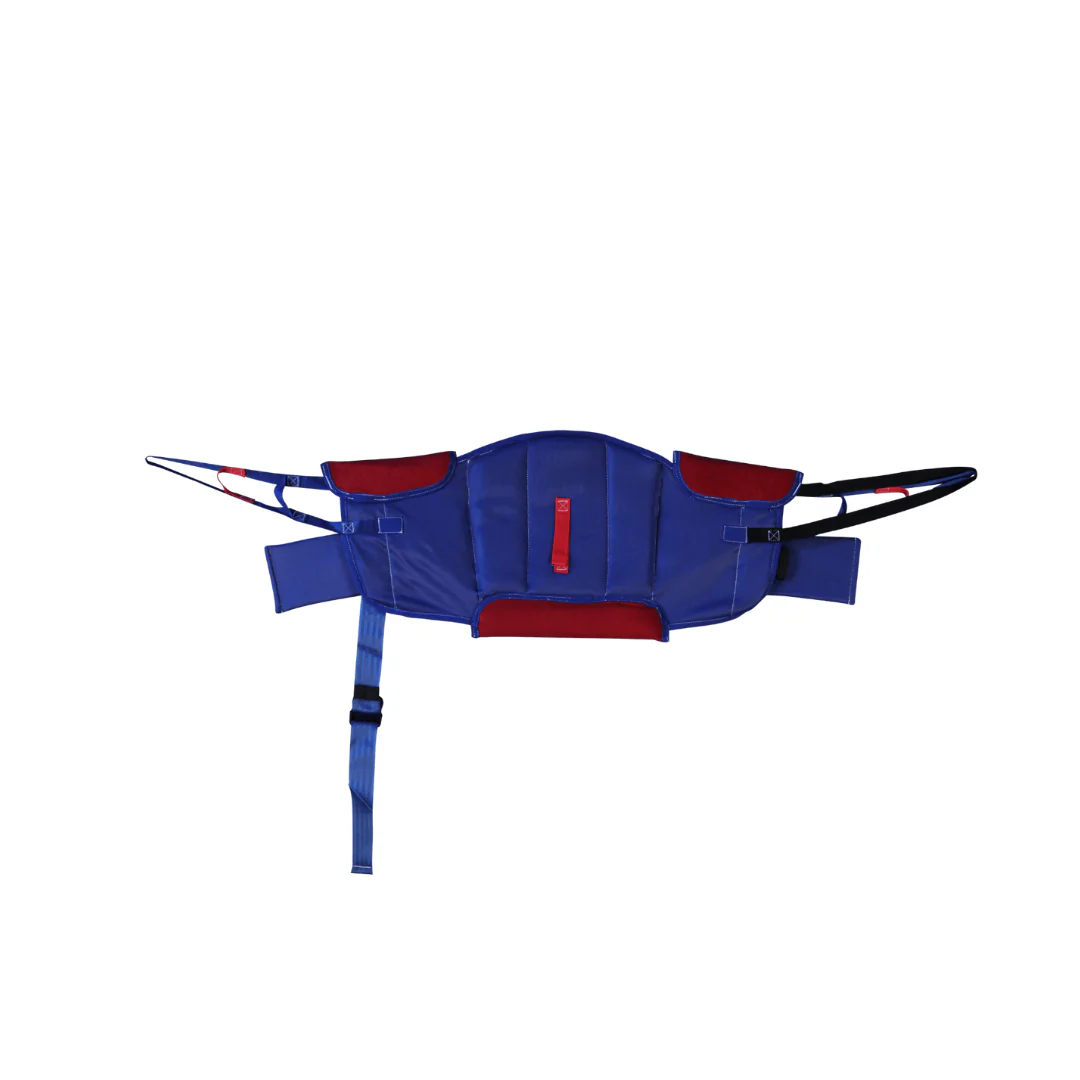

J	Sit-to-Stand / Stand Assist Slings
K	Padded Sit-to-Stand / Stand Assist Slings

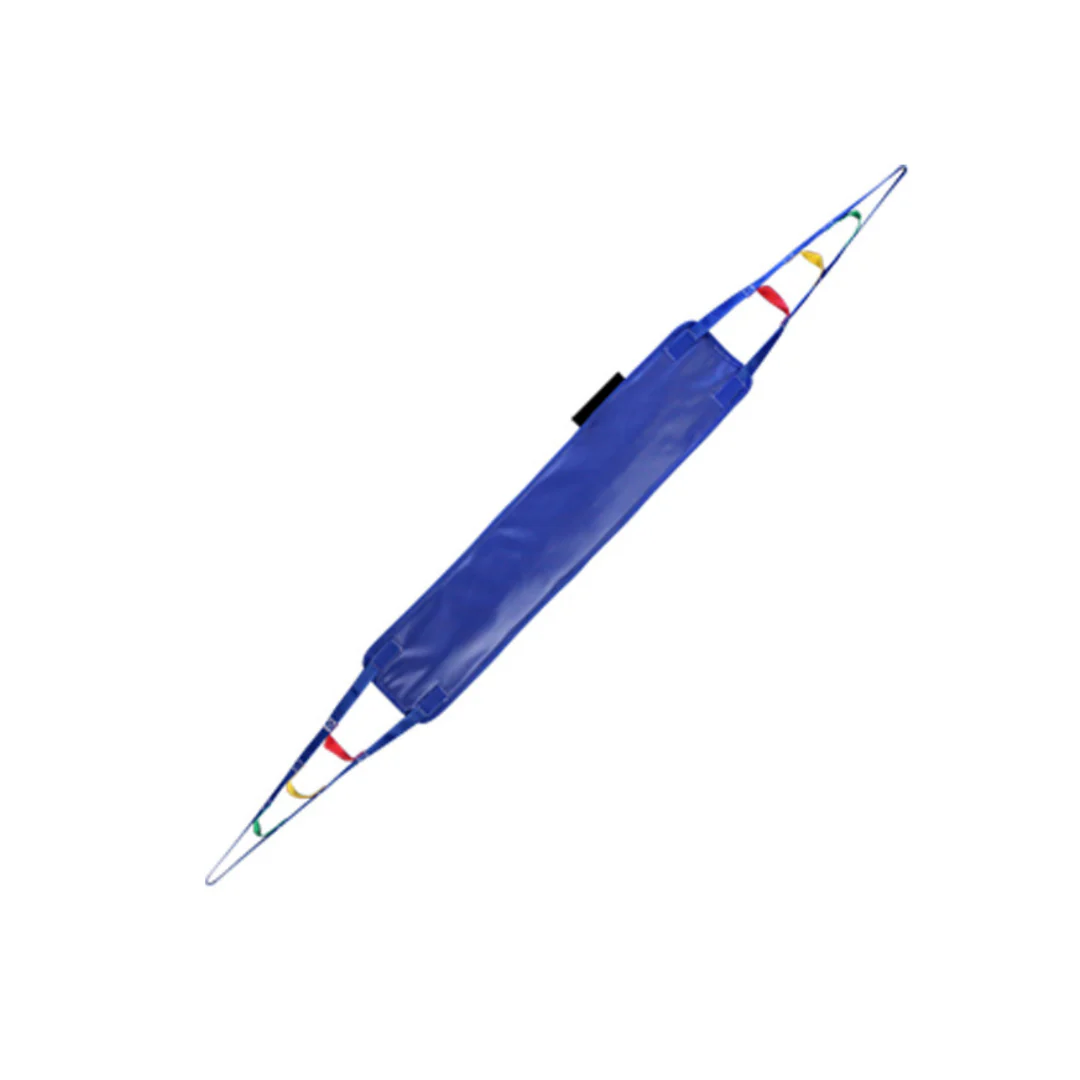

L	Transfer Slings & Support Straps for Sit-to-Stand / Stand Assist Lifts
M	Clip Sling with Padded Leg & Head Support (For use with Protekt® All-In-One Lift)
